Homers/TEVO Hydra 3D Printer big Printing size 310*310*400mm DIRECT DRIVE DUAL DRIVE BMG extruder & V6 VOLCANO HOTEND - Homers 3D Onlinestore

Hydra 3D Printer (310*310*400mm)


Regular price Sale price $429.00 $599.00 Save 28%
/
In Stock. Ships in 24 hours

Only 47 items in stock!

Top Items


TevoUPp Hydra 3D Printer

Big Printing Size 310*310*400mm
DIRECT DRIVE DUAL DRIVE BMG Extruder & V6 VOLCANO HOTEND

Dear Customers , Before you placed the order please read below info in advance .

Homers/Tevo Hydra Technical Specifications:

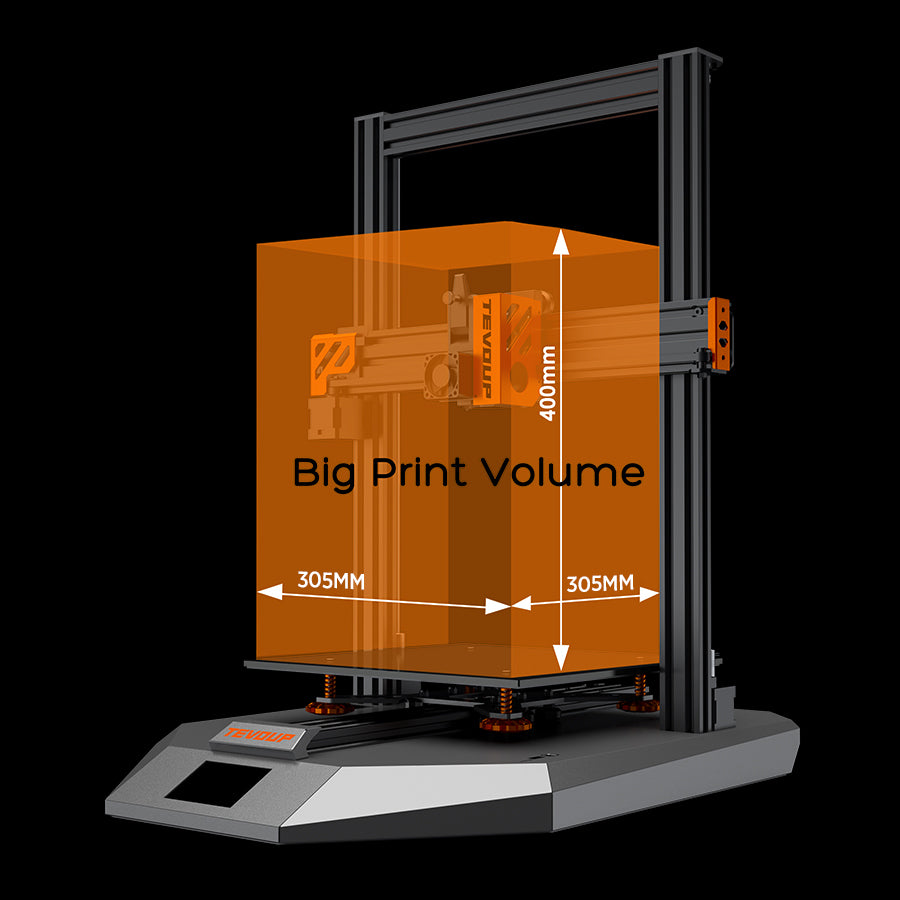

  • Build volume: 310 x 310 x 400 mm | 11.8 x 11.8 x 15.75 in
  • Layer resolution: 0.1mm – 0.35mm (on 0.4 nozzle)
  • Build speed: 10mm/s – 300mm/s
  • Travel speed: 350mm/s max
  • Print surface: Removable Glass-ceramic (magnetic PEI flex plate as upgrade)
  • Heat bed type: 110/240V AC heat bed (SSR + 135C FUSE)
  • Number of extruders: 1 (2 via optional upgrade kit)
  • Filament diameter: 1.75mm
  • Supported materials: PLA, PLA FLEX, PLA WOOD, ABS, PETG, HIPS, ASA, PA, PC, CF materials... up to 280C

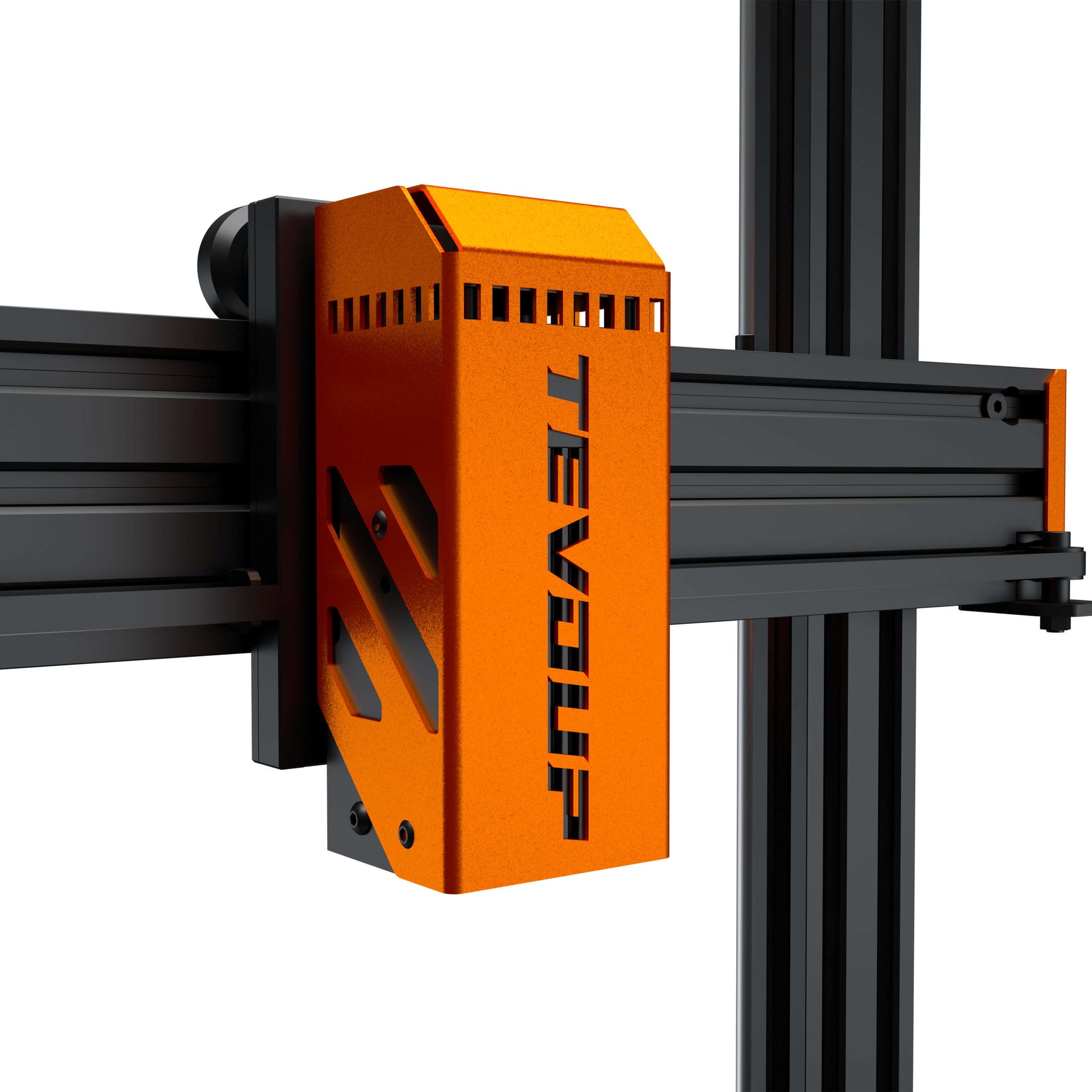

  • Standard features: Modular X-Carriage, belt synced dual-z, direct drive, silent drivers
  • Advanced features: ABL 3dtouch (bltouch upgradable), 4.2inch touchscreen, sensorless homing (X,Y), uart mode drivers, filament runout sensor
  • Calibration: Auto bed leveling touch mode - BILINEAR 5,5 (X,Y) points, 4,4 subdivision.
  • Print technology: FFF (Fused Filament Fabrication)
  • Feeder type: DIRECT DRIVE - DUAL GEAR BMG extruder 3:1 - high torque
  • Max Z axis resolution: 0.05mm
  • Nozzle type: MK8 VOLCANO - volumetric speed: ~38mm^3/s
  • Nozzle diameter: 0.4mm (spare nozzle: 0.4, 0.6, 0.8)
  • Nozzle temperature: up to 280C (all metal throat - heatbreak)
  • Nozzle heat up time: < 2 minutes
  • Build plate heat up time: 120C in less than 2 minutes
  • Operating sound: < 55dBA
  • Power consumption: 110 – 240V 600W max (w/ heated bed turned on)
  • Control board: 32bit MKS sGen L v1.0 (later v2.0) / TMC 2209 v2.0 UART MODE / Marlin 2.0.7.2 / 4.2 inch touchsceen
  • Upgradability: In-house made X-carriage modular tool changer system: LASER, CNC, DUAL EXTRUDER, open-source firmware, removable drivers, and more to come...
  • Product weight: 16kg
  • Gross weight: 19kg
  • Product dimensions: 560 x 600 x 620 mm | 22.05 x 23.62 x 24.41 in
  • Shipping box: 635 x 520 x 280 mm | 25.98 x 22.05 x 12.20 in
