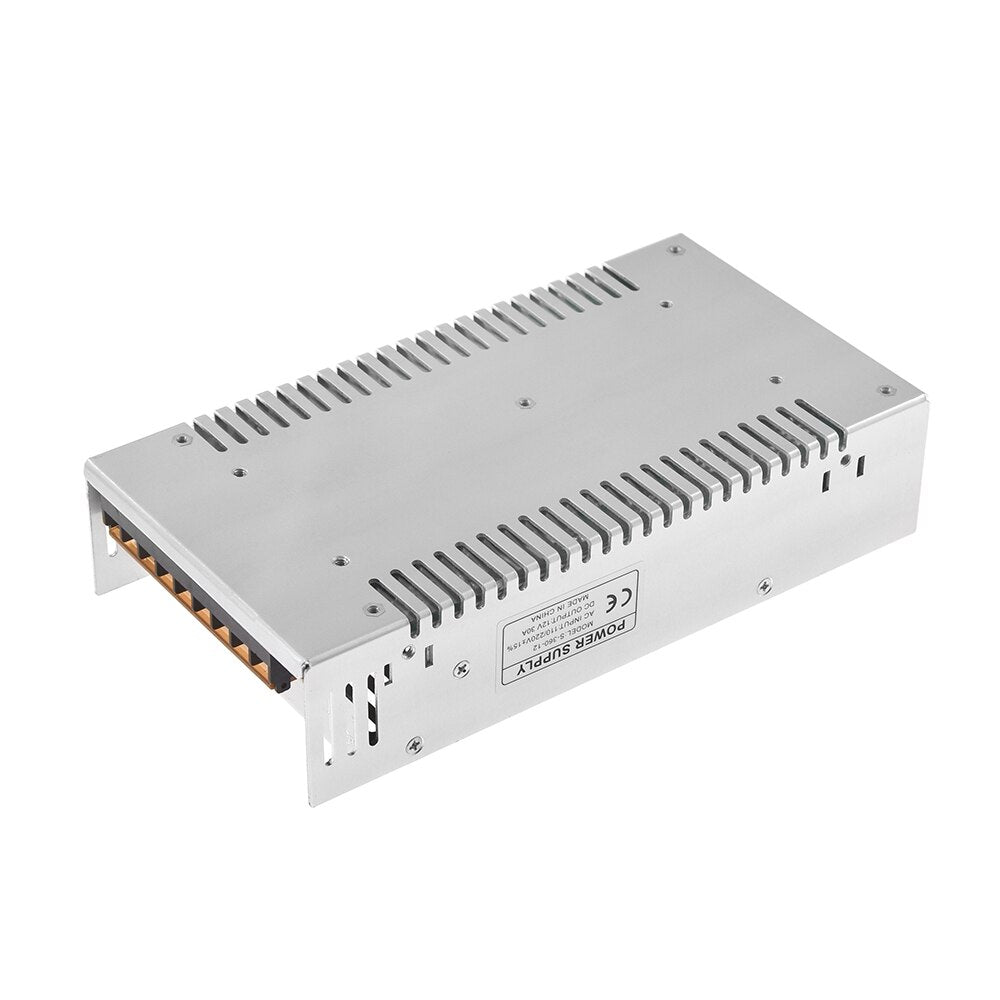

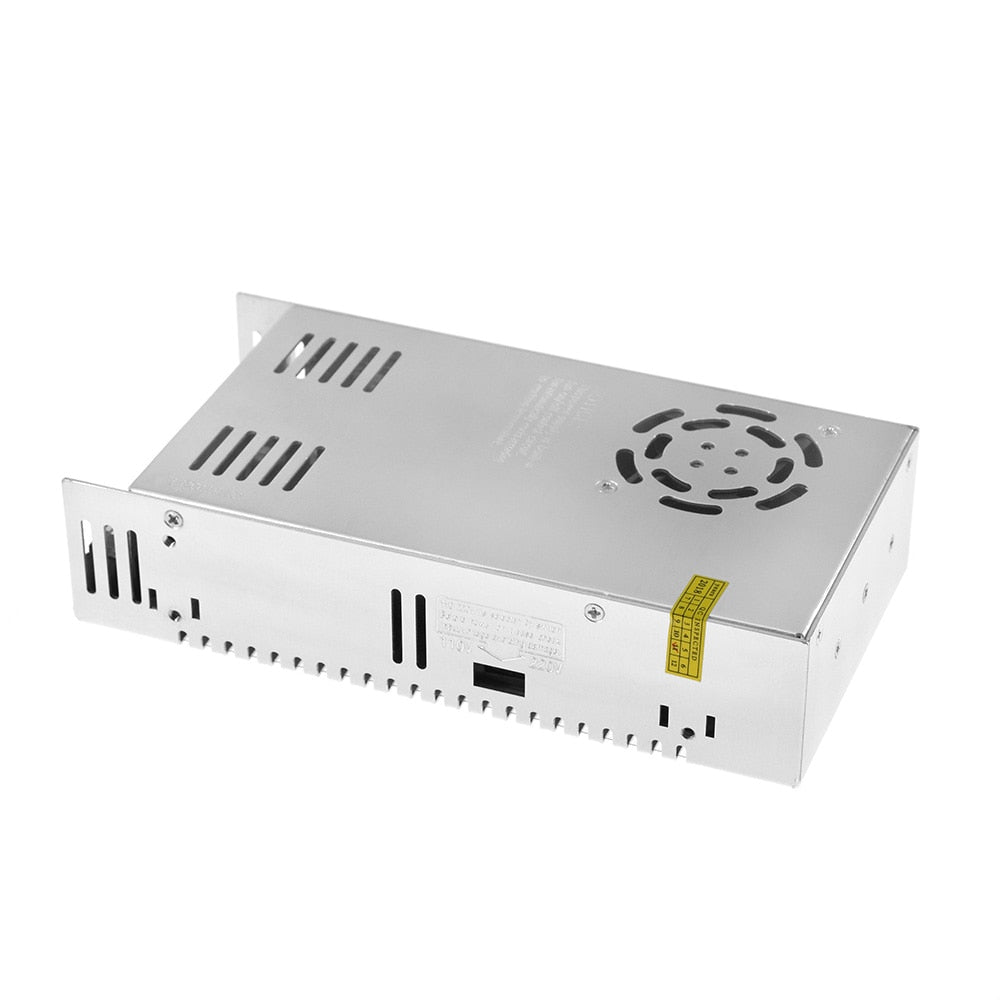

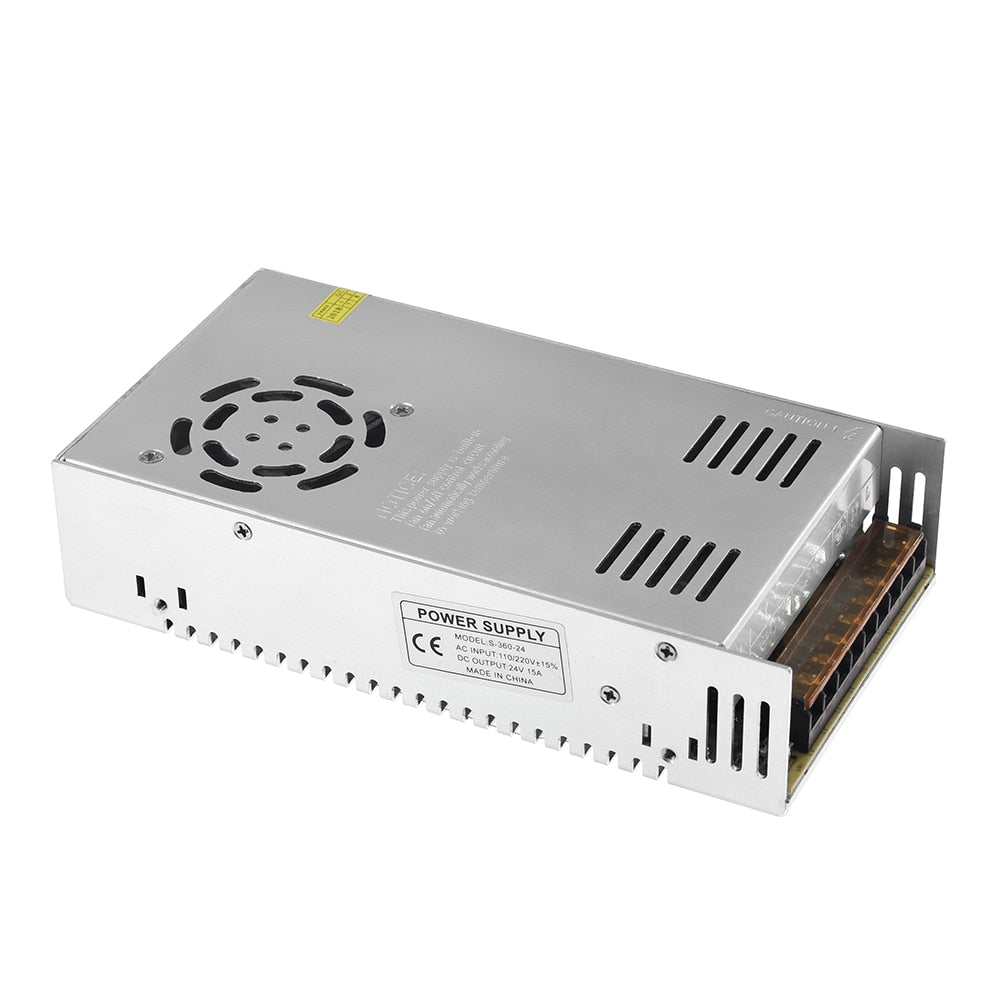

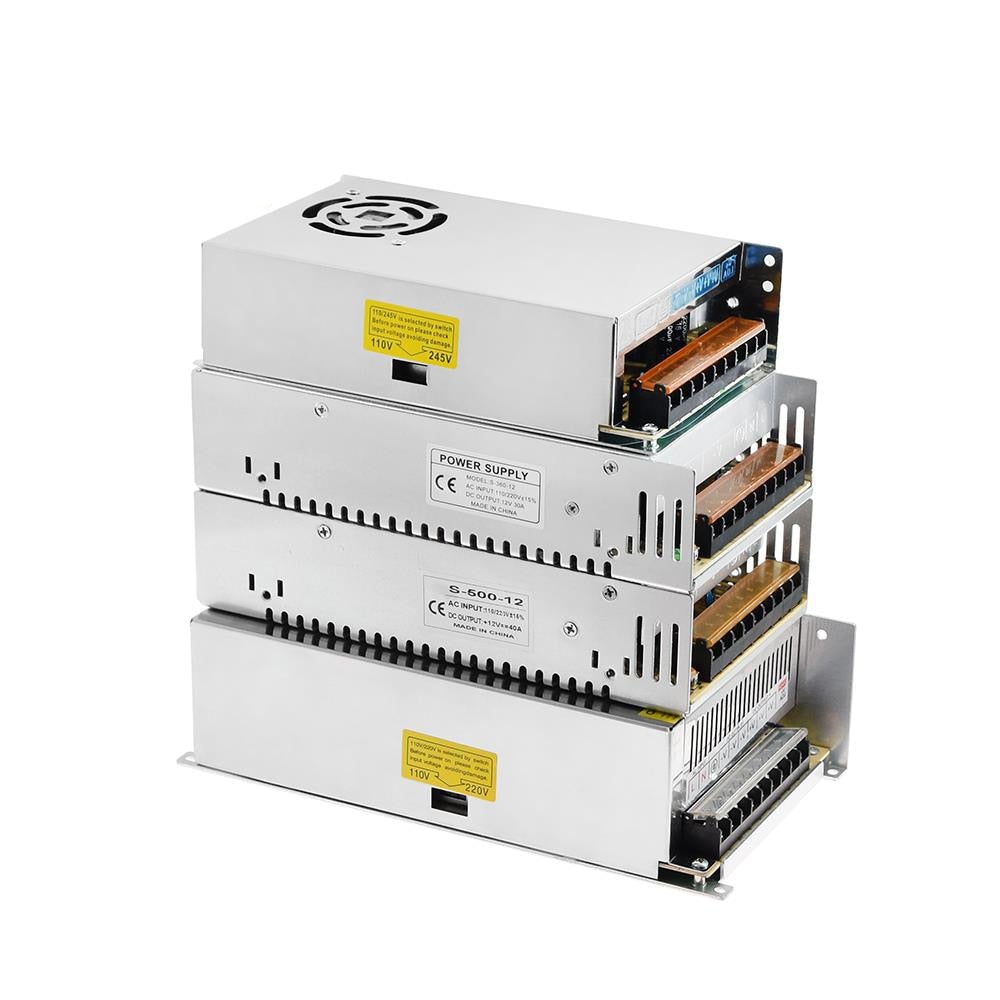

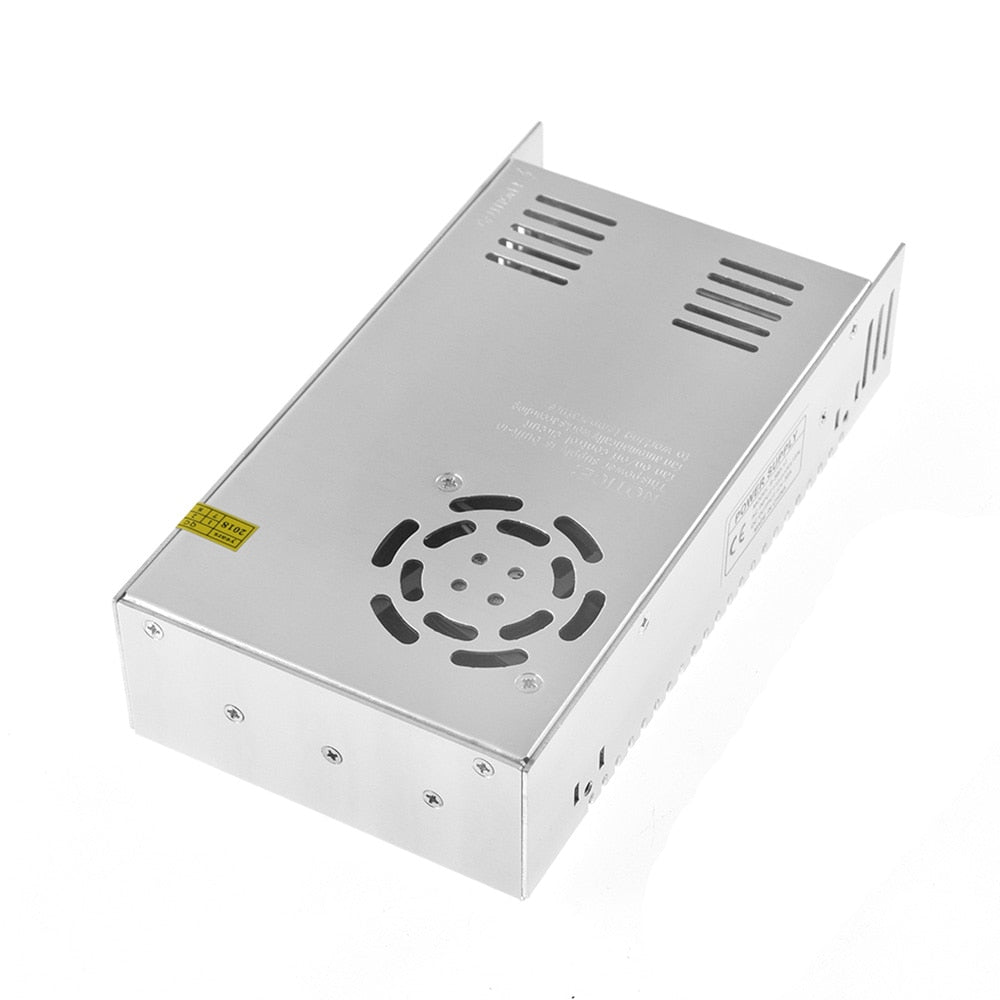

Features:
- Universal AC input / full range
- It's good quality high performance
- Input:AC 85-265V 50/60Hz
- Out put: DC 12V 24V
- Volt 220V to 12V AC-DC SMPS 110V
- 10A 20A 25A 30A 33A 40A 16.5A
- 100% full load burn-in test
- Protections overload / over voltage / short circuit
- Cooling by free air convection
- This Power Supply Unit "DOES NOT" come with installation instruction,wiring cable.on/off switch,or screws,Professional installation of qualified electrician is highly recommended.
How to calculate Support max LED Strip Length:
- Assumption Your LED Strip 60LEDs/m,and each LED 0.2W,then calculate max LED Strip Length 0.2W/LED X 60LEDs/m=12W/m, 60W(this listing)÷12W/m=5m,So,Support the LED Strip(60LEDs/m,0.2W/LED) Length (Max)=5M
- Not suggest for use in bathroom
| DC12V specification | ||||||
| 1 | 20A | DC12V | AC85-265V | 250W | ||
| 2 | 25A | DC12V | AC85-265V | 300W | ||
| 3 | 30A | DC12V | AC85-265V | 360W | ||
| 4 | 33A | DC12V | AC85-265V | 400W | ||
| 5 | 40A | DC12V | AC85-265V | 480W | ||
| DC24V specification | ||||||
| 1 | 10A | DC24V | AC85-265V | 240W | ||
| 2 | 15A | DC24V | AC85-265V | 360W | ||
| 3 | 16.5A | DC24V | AC85-265V | 400W | ||
| 4 | 20A | DC24V | AC85-265V | 480W |
