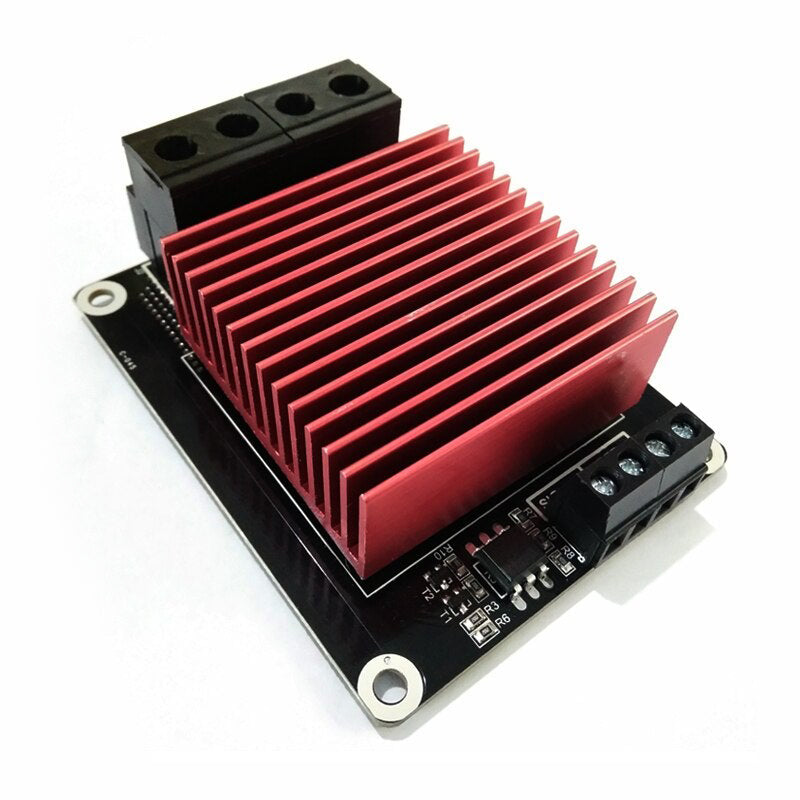

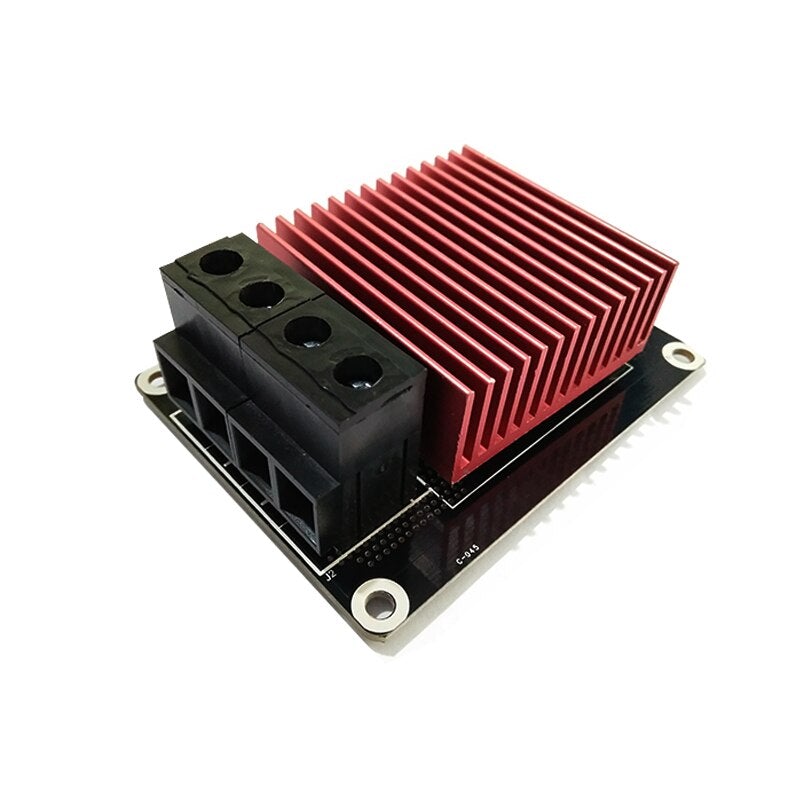

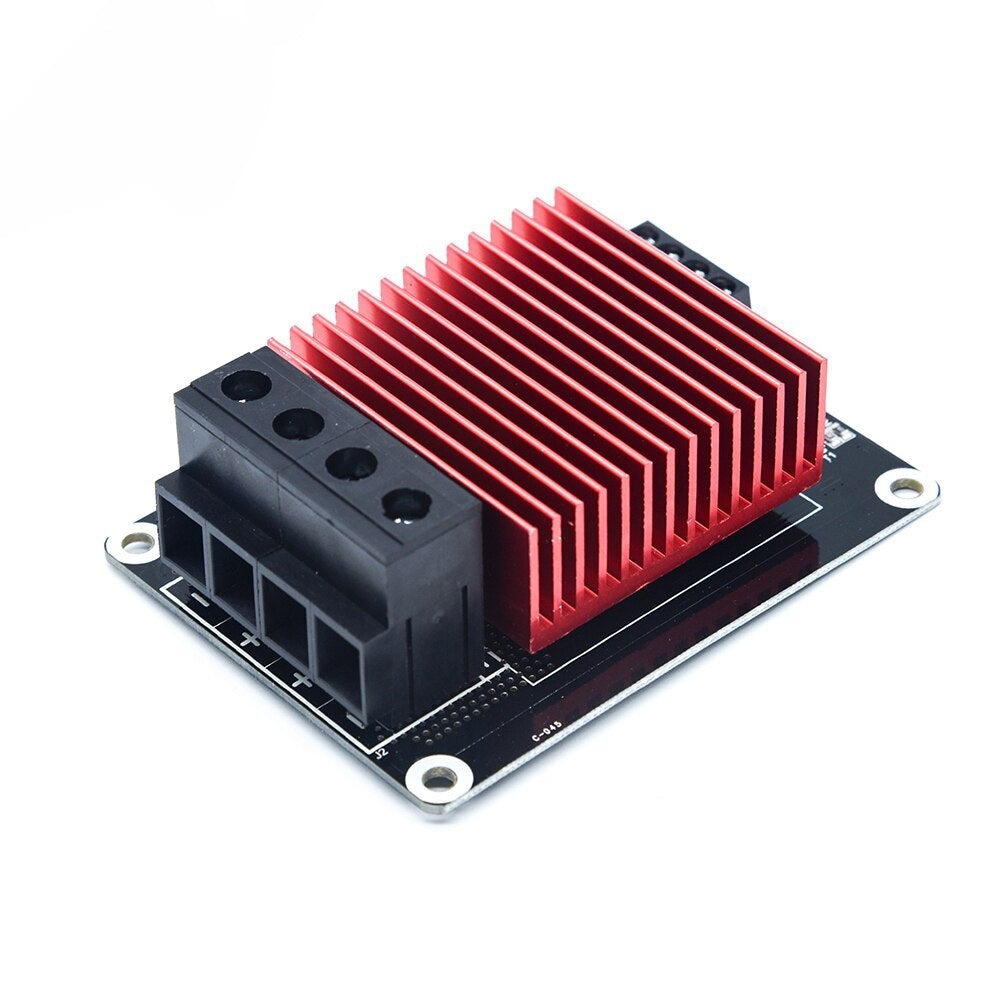

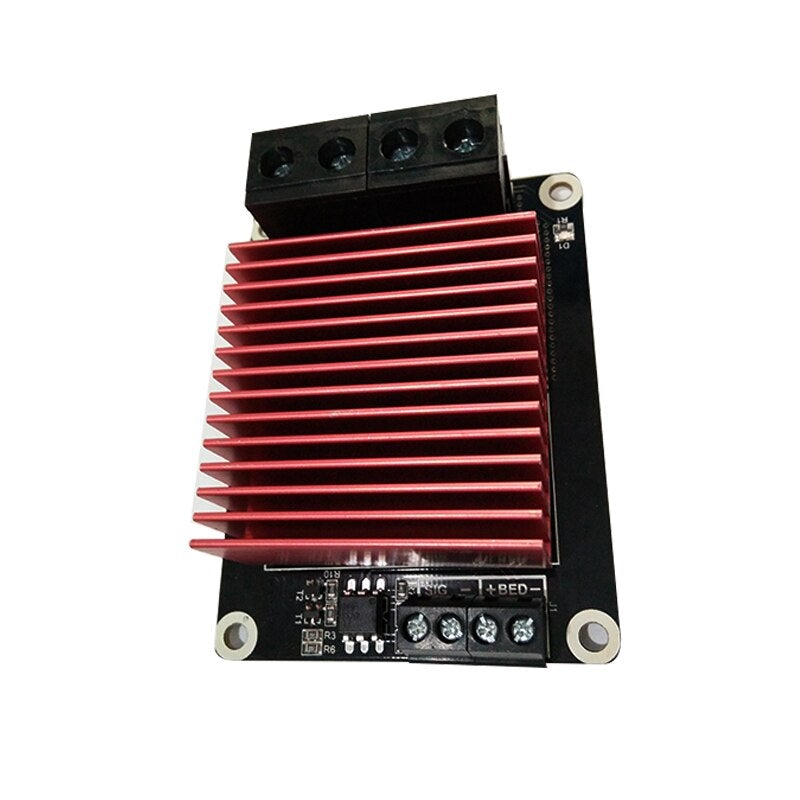

Heating controller MKS MOSFET for heat bed/extruder MOS module exceed 30A support big current
Advantages:
1. Each one will be done functional test . 2. Superior performance of MOSFET (Max 280A). 3. Extra large heat sink , the maximum current can be up to 30A or more. 4. Can use hot bed output signal of Ramp1.4 and MKS series to control . 5. Can use digital signal of 5-24v to control.

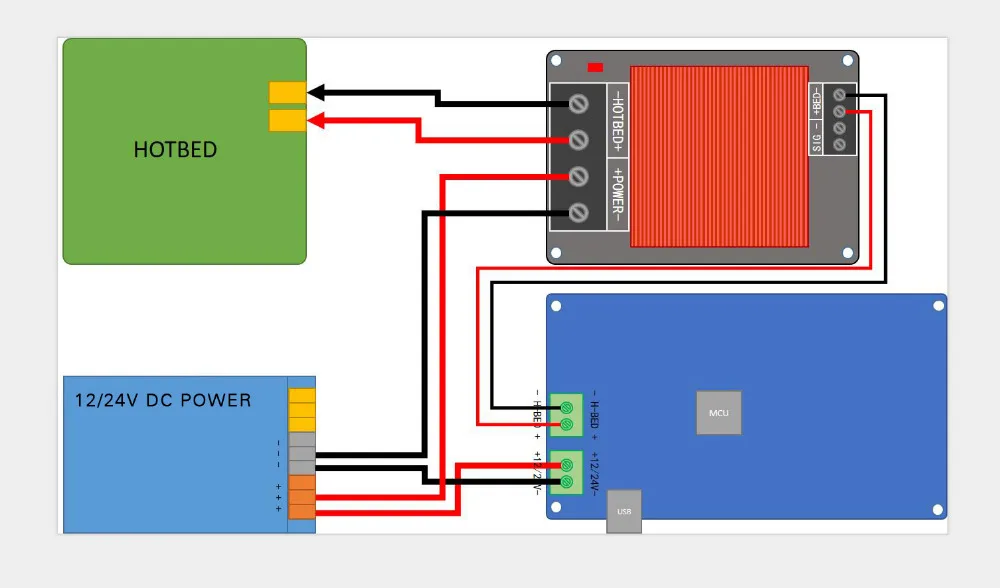

Usage:
1. Connect Power to power source, please note the anode and cathode.
2. Connect Hotbed to heated wire, please note the anode and cathode.
3.Connect digital control signal to Gnd,D8.
4. Connect the control signal of Ramps1.4 or MKS MOSFET to -Bed+
5.Choose one signal group to connect.
Package: MOS module
