Modular 2-in-1 3D Printer & Laser Engraver

2-in-1 3D Printer & Laser Engraver

Hydra, as the monster of mythology, also represents invincibility. If we cut off its head 2 other women will grow in its place. We did the same with the laser head. If you're looking to get into laser engraving as well as 3D printing, this is a great Choice for you. With 2 swappable modular heads, you can easily switch from 3D printing to laser engraving.

Swappable Modular Design

Turning your 3D printer to a laser engraver has never been so easier and seamless with Hydra's swappable modular design.

Swappable Modular Design

Hydra 3D Laser Printer integrates the functions of 3d printing and laser engraving. You can use it to print almost anything for your creations. It can carve MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.

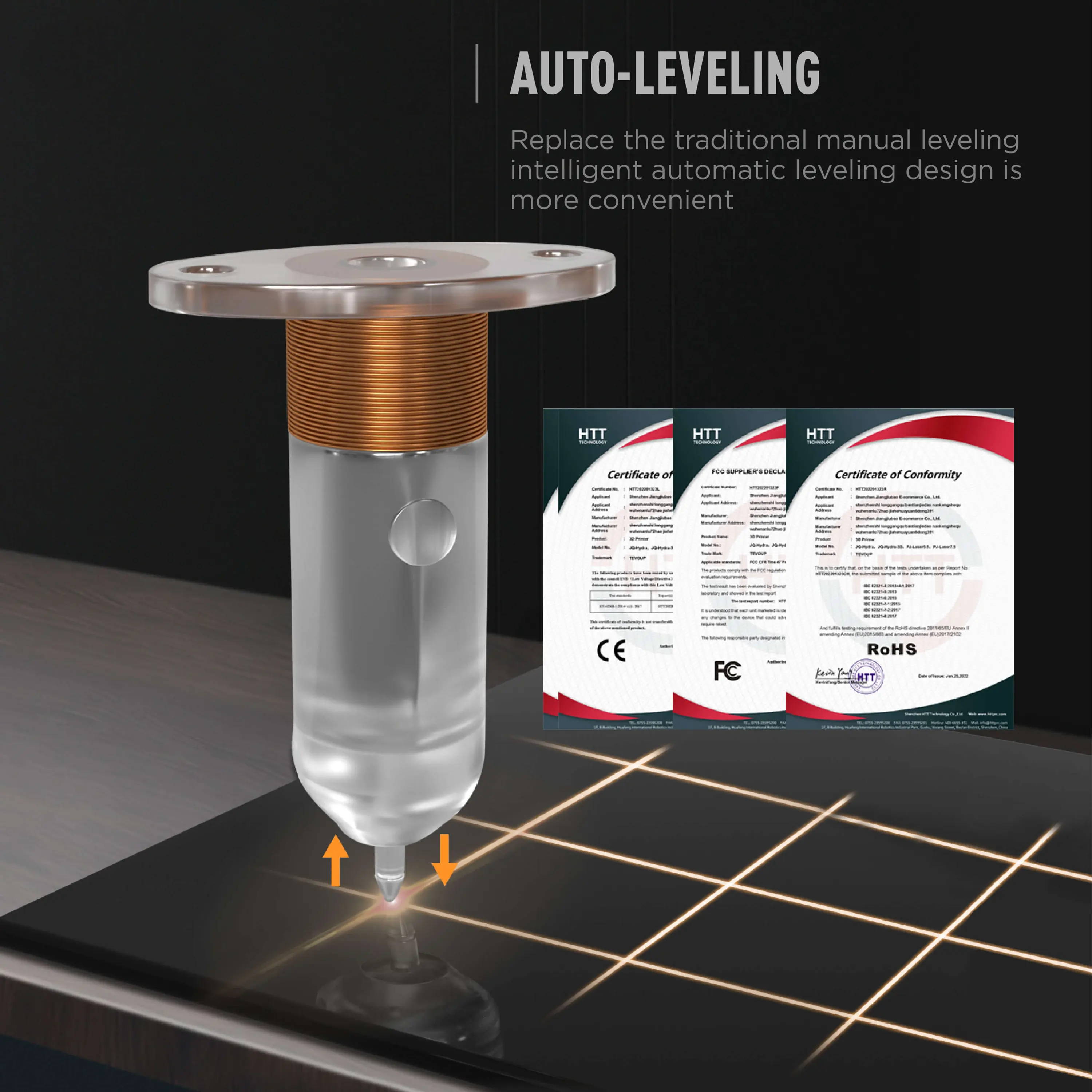

Auto Leveling

Thanks to the 3Dtouch probe, the Hydra can use the Mesh Bed Leveling process to compensate for microscopic imperfections of the print sheet, and inconsistencies caused by the assembly and stacking of the manufacturing tolerances of various parts. Achieving a great-looking first layer becomes quick and easy.

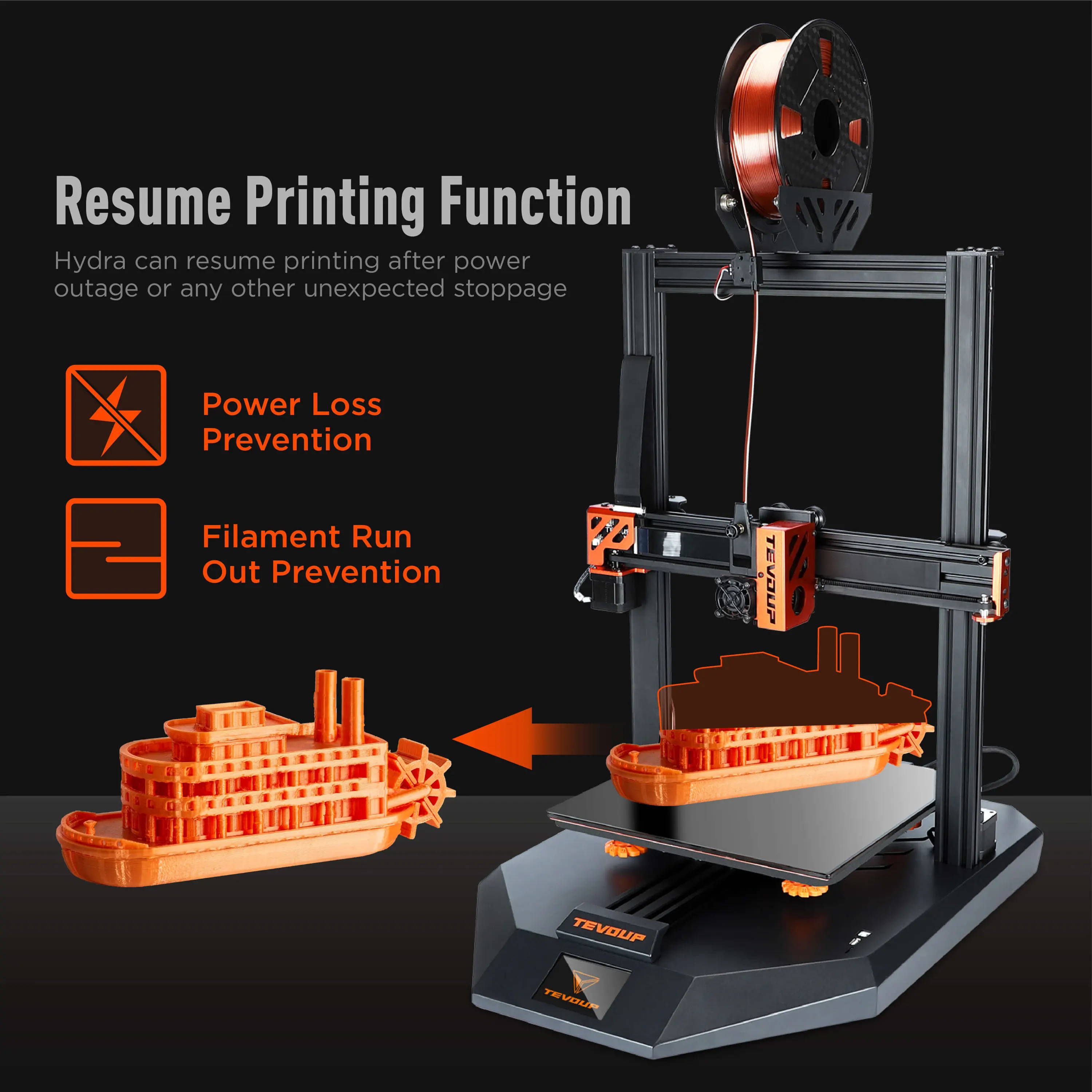

Filament Runout Detection

Filament runout sensor can detect whether the filament is run out during the printing process. It will send signal to the printer when filament is run out and printer will stop printing. Printing will resume automatically when the new filament is loaded. With this, you won’t have to worry, especially with long prints, that your filament will run out and cause any problems.

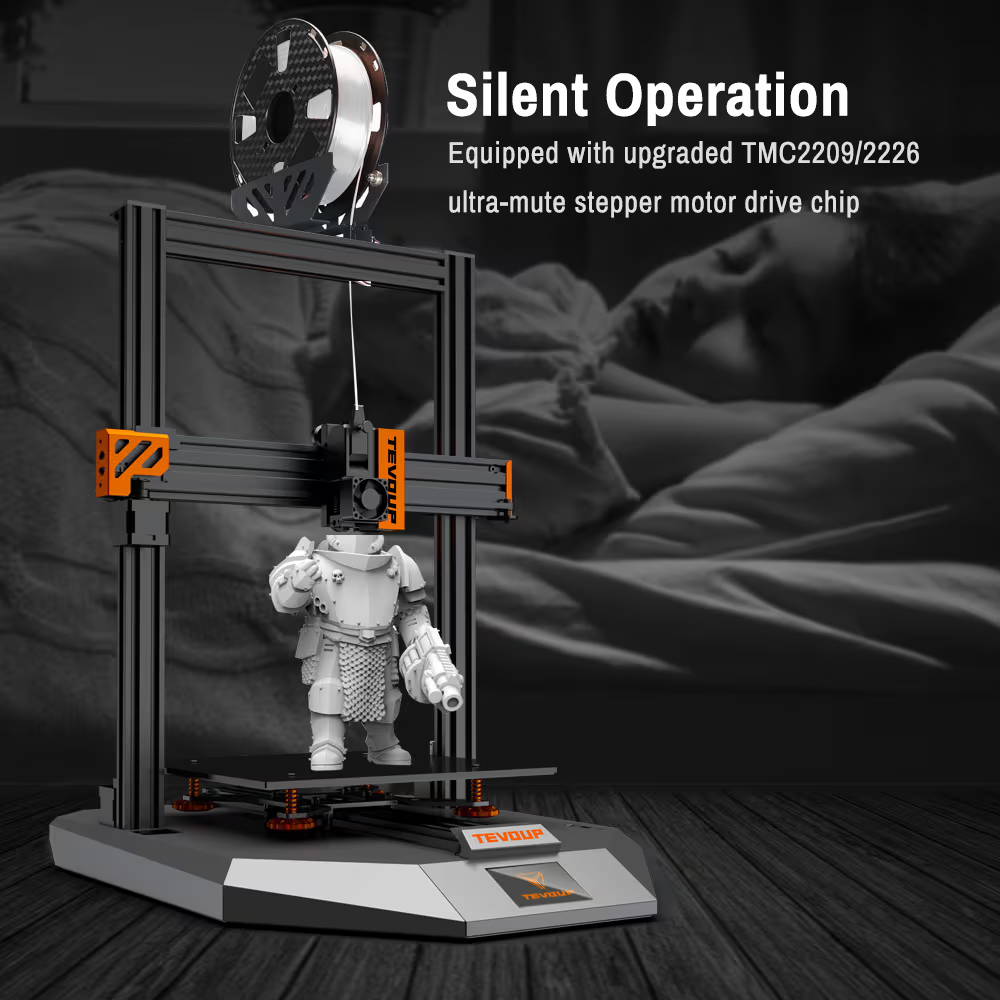

Silent Operation

Equipped with upgraded TMC2209/2226 ultra-mute stepper motor drive chip which offers silent motors and no end-stop switches, opening the doors to printer pcbs with installed drivers and no heatsinks or jumpers. Or cooler running for step-stick retrofits.

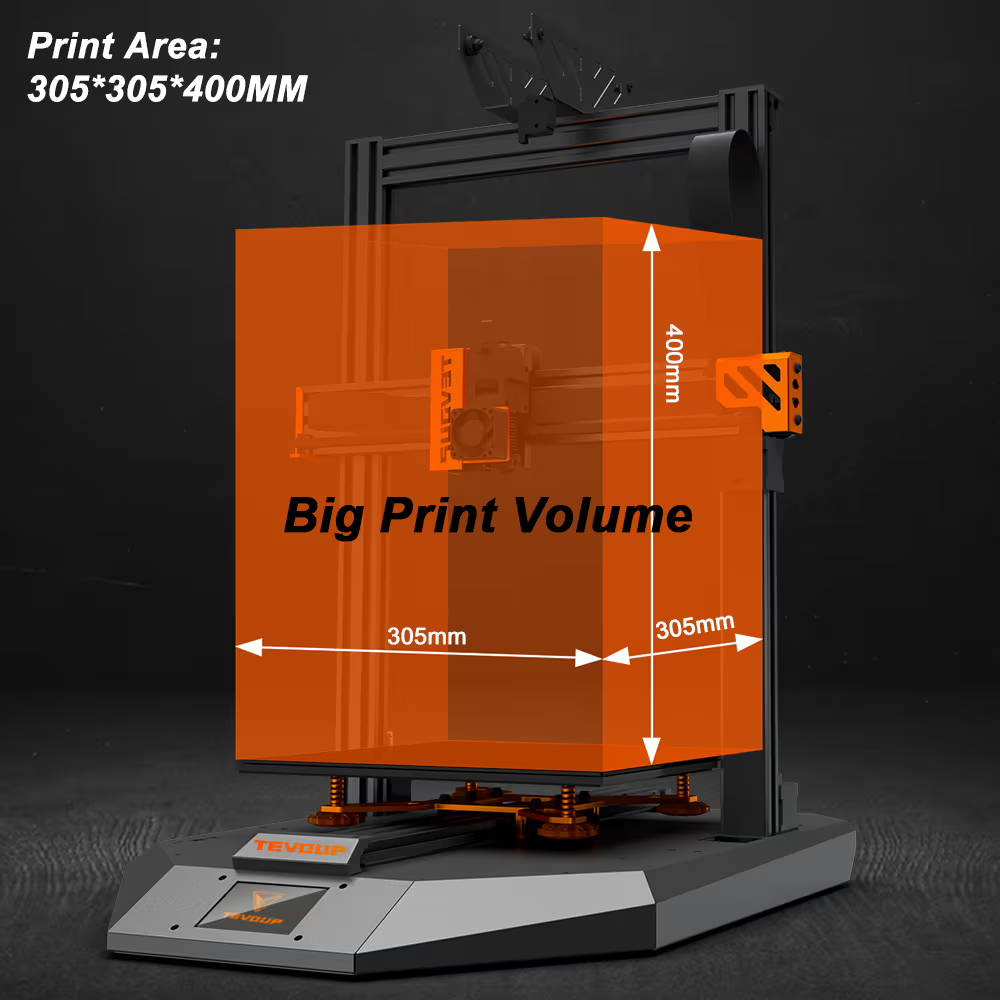

Large Build Volume

Featuring a 305*305*400mm build volume, Hydra allows you to print large and complex model, meeting more of your printing requirements.

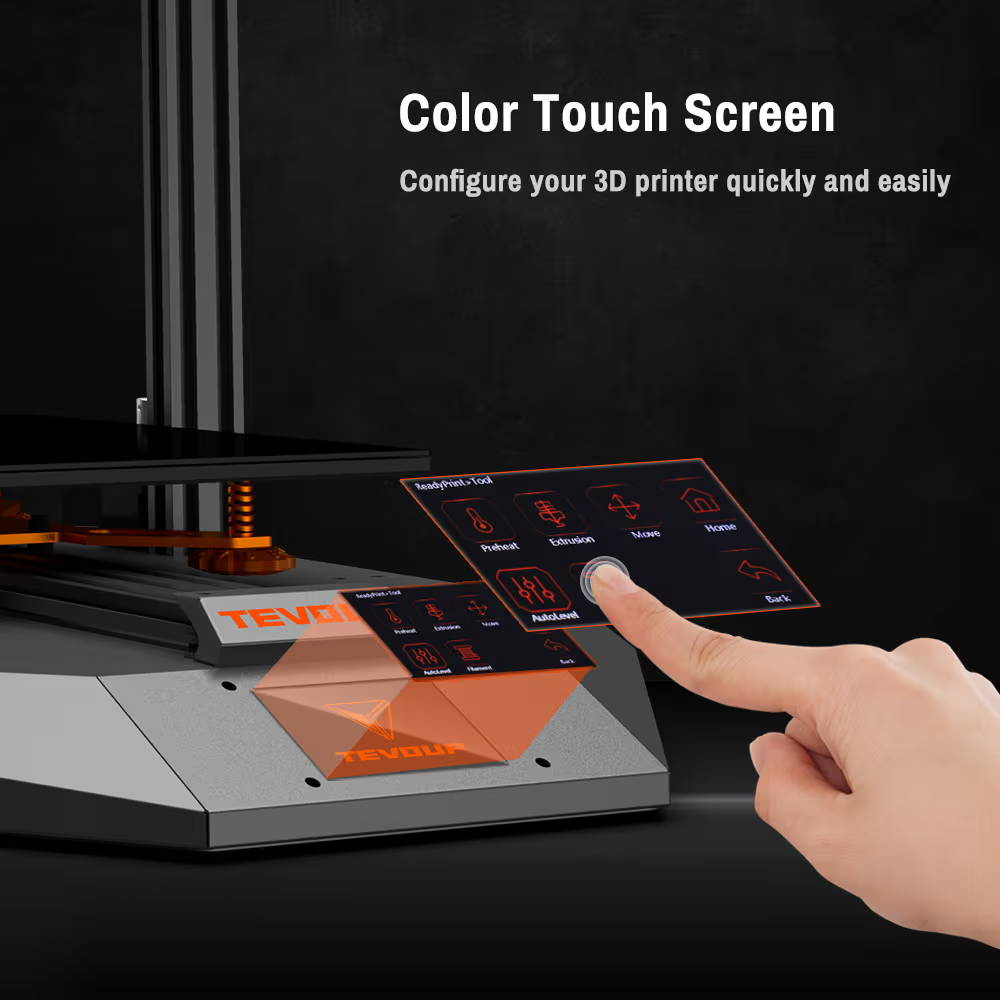

Color LCD Screen

Configure your 3D printer quickly and easily, and get sliced model previews before you start printing! Every option is simply a few clicks away thanks to the 2.8", 240320 LCD screen with 65.000 colors.

Laser Engraving Models

Youtube Review from Just Vlad

"If you're looking to get into laser engraving as well as 3D printing, this is a great choice for you. With 2 swappable modular heads, you can easily switch from 3D Printing to Laser Engraving."

---Just Vlad

Name: Hydra 2-in-1 3D Printer & Laser Engraver (305*305*400mm)
Brand: Homers 3D Onlinestore
SKU: 01010020
Price: 522.0 CAD
Availability: OutOfStock

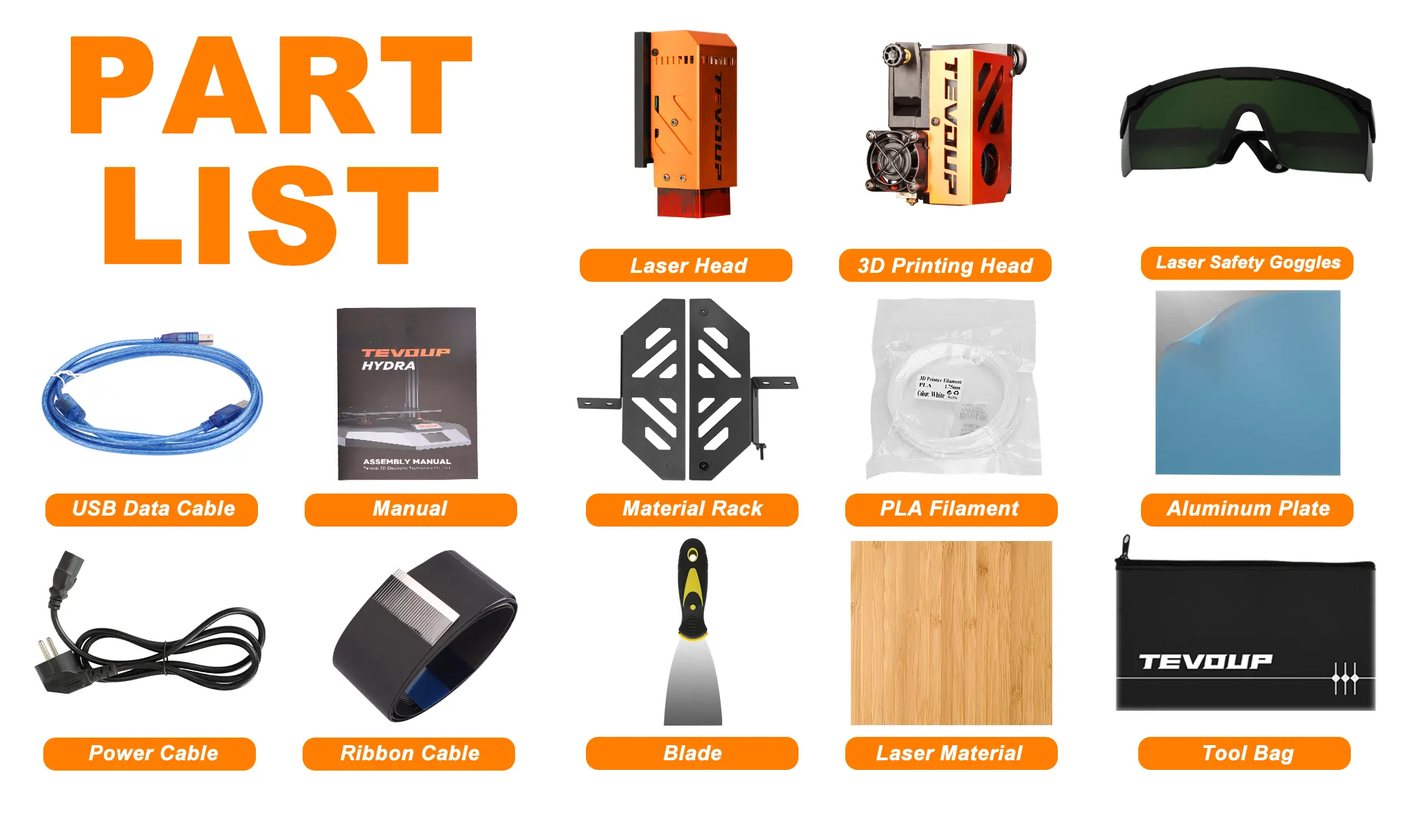

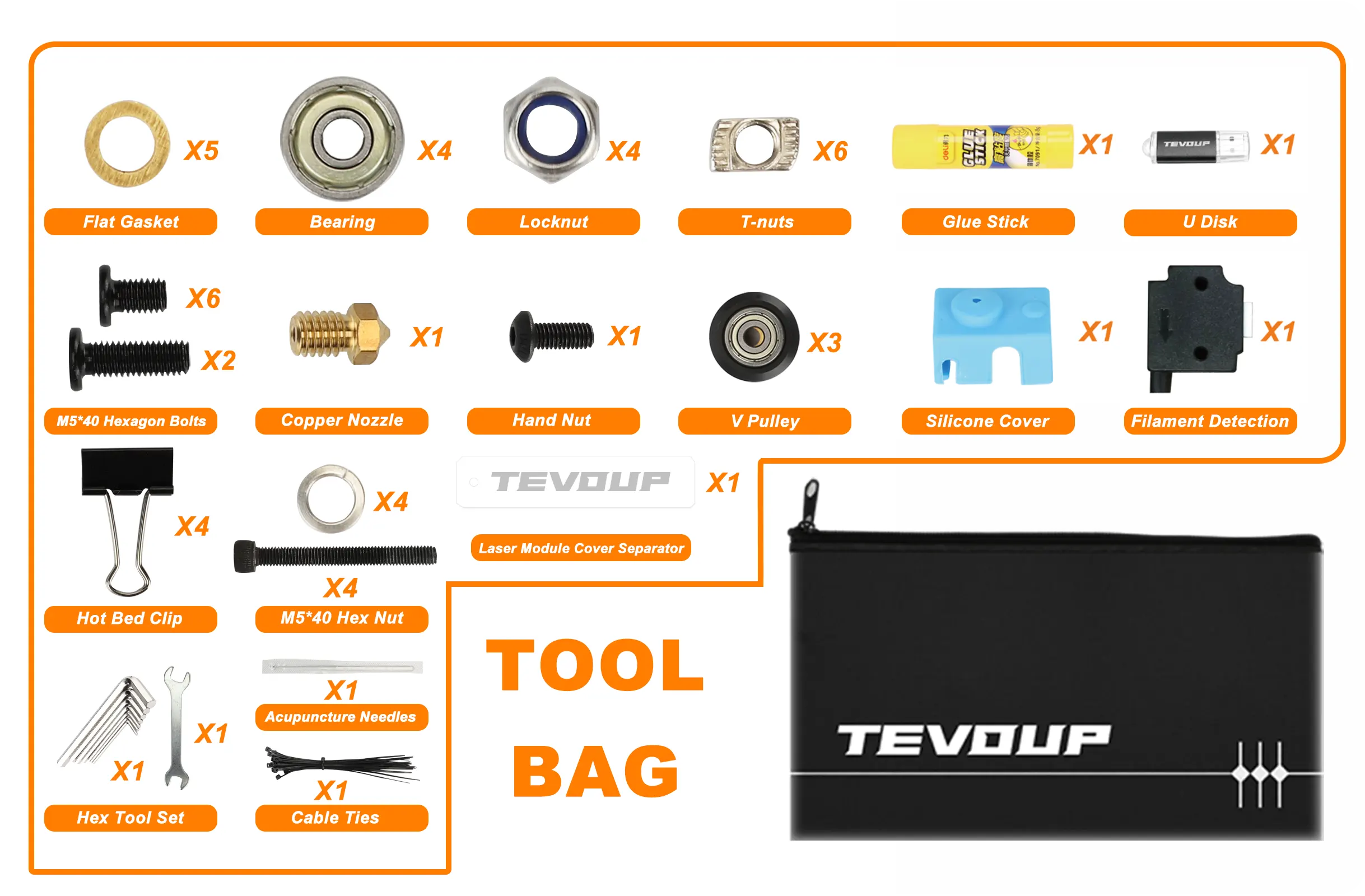

What's in the Box

Specification
Shipping
Firmware

Technical Specifications

Build Volume Build Speed

305x 305 x 400 mm | 11.8 x 11.8 x 15.75 in 0.05mm – 0.35mm (on 0.4 nozzle)

Travel Speed Layer Resolution

250mm/s 0.05mm – 0.35mm (on 0.4 nozzle)

Print Surface Print Technology

Removable Glass-ceramic FFF (Fused Filament Fabrication)

Heat Bed Type Build Plate Heat up Time

AC heat bed (SSR Normally Open) 120°C in less than 2 minutes

Number of Extruders Filament Diameter

1 (2 via optional upgrade kit) 1.75mm

Calibration Feeder Type

Auto bed leveling - BILINEAR 9 points DIRECT DRIVE DUAL DRIVE BMG extruder

Operating Sound Power Consumption

< 55dBA 110 – 240V 600W max

Max Z Axis Resolution Advanced Features

0.05mm 3dtouch, filament detection sensor, sensorless homing

Nozzle Type Nozzle Diameter

V6 0.4mm (spare nozzle: 0.4, 0.6, 0.8)

Nozzle Temperature Nozzle Heat up Time

150°C – 240°C ptfe heatbreak throat < 2 minutes

Supported Materials

PLA, PLA FLEX, PLA WOOD, ABS, PETG, HIPS, ASA, PA, PC

Standard Features

Modular X-Carriage, ABL, touchscreen, synced dual-z, direct drive, silent drivers

Control Board

32bit MKS Robin nano v3.0 / TMC 2209 v2.0 UART MODE/ Marlin 2.0.9.1 / 3.5 Inch touchsceen

Upgradability

In-house made X-carriage modular system: LASER head, open-source software, removable drivers, and more to come...

Package Specifications

Product Weight Gross Weight

16KG 19KG

Product Dimensions Shipping Box

560 x 600 x 620 mm | 22.05 x 23.62 x 24.41 in 635 x 520 x 280 mm | 25.98 x 22.05 x 12.20 in

Ship from	Ship to	Shipping Time
Czech Republic	Most Countries in Europe	3-7 Business Days
United States	United States	3-7 Business Days
China	Australia, Canada, New Zealand,Brazil and Other Countries	1-3 Month Sea Freight
