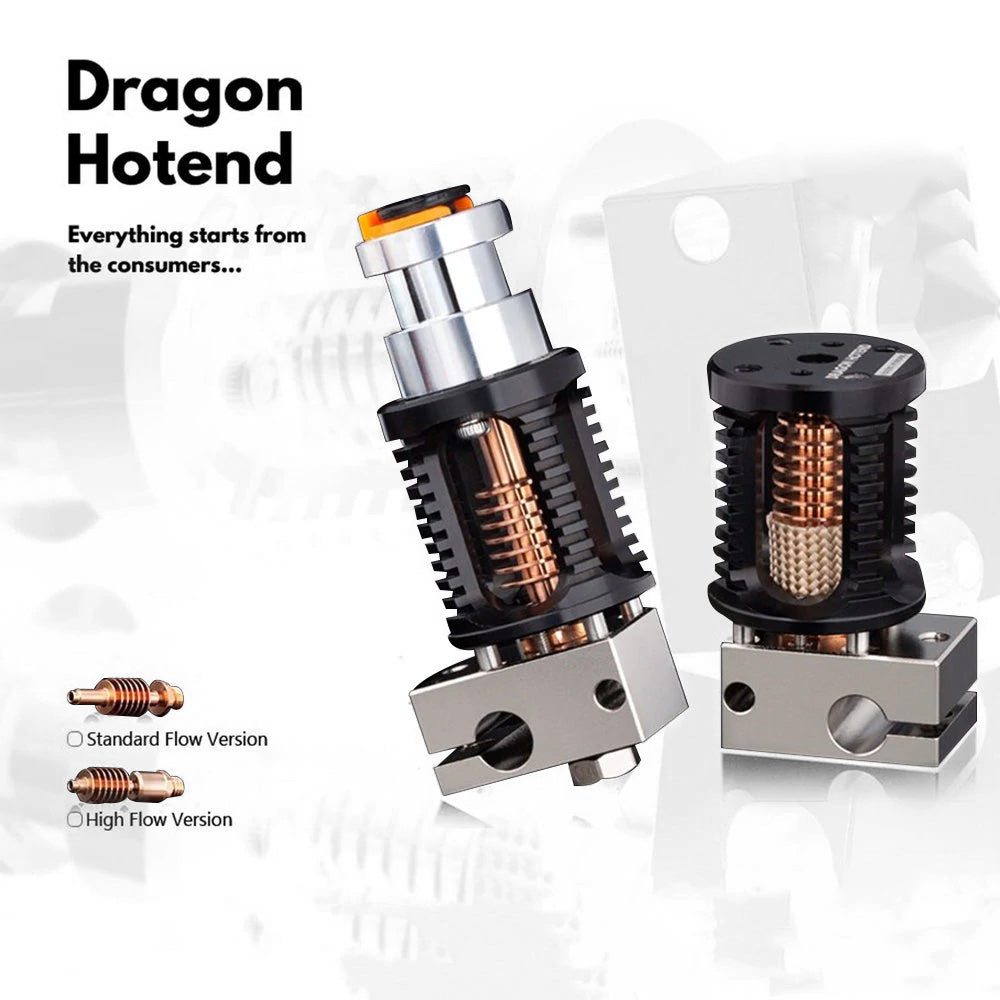

Dragon Hotend V2.0
Dragon Hotend V2.0
Regular price
$136.00 CAD
Regular price
$181.00 CAD
Sale price
$136.00 CAD
Unit price
/
per
Shipping calculated at checkout.
22 in stock
Couldn't load pickup availability

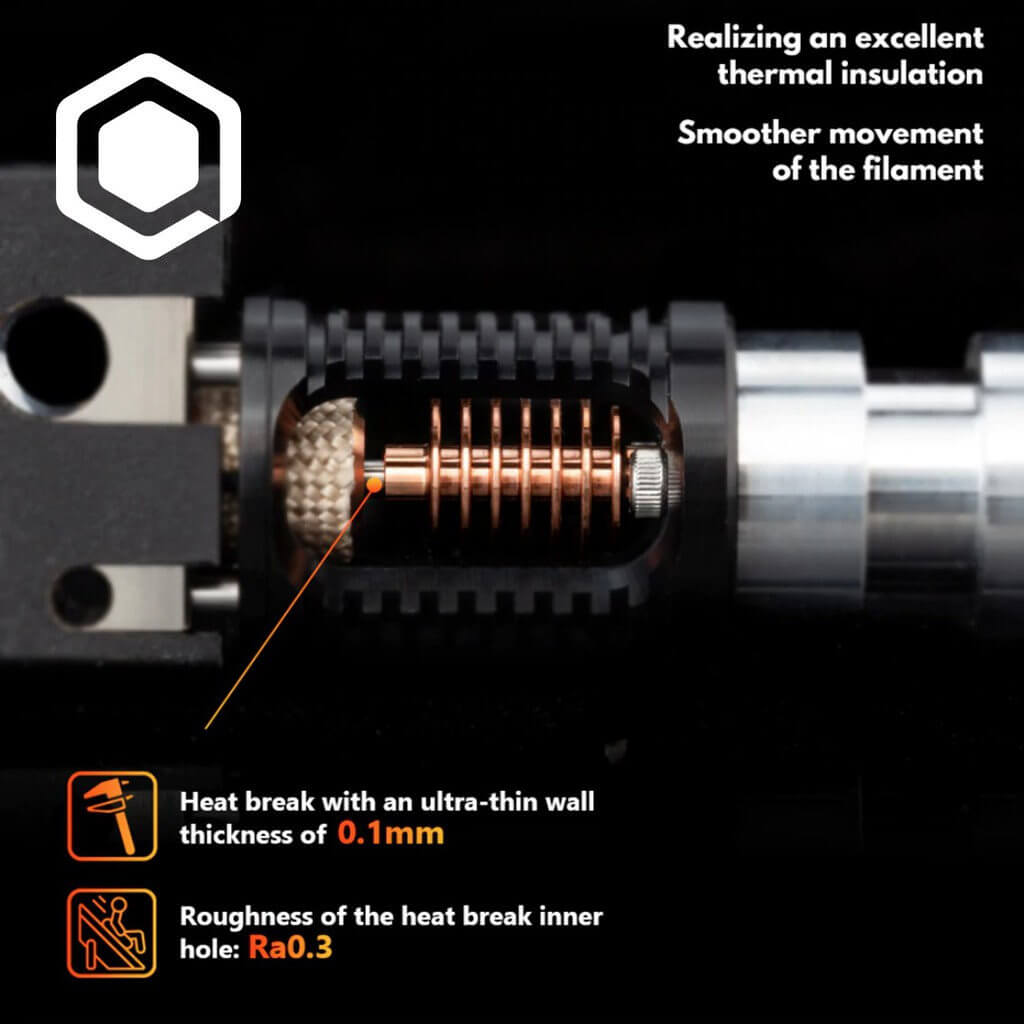

- Superior heat break performance

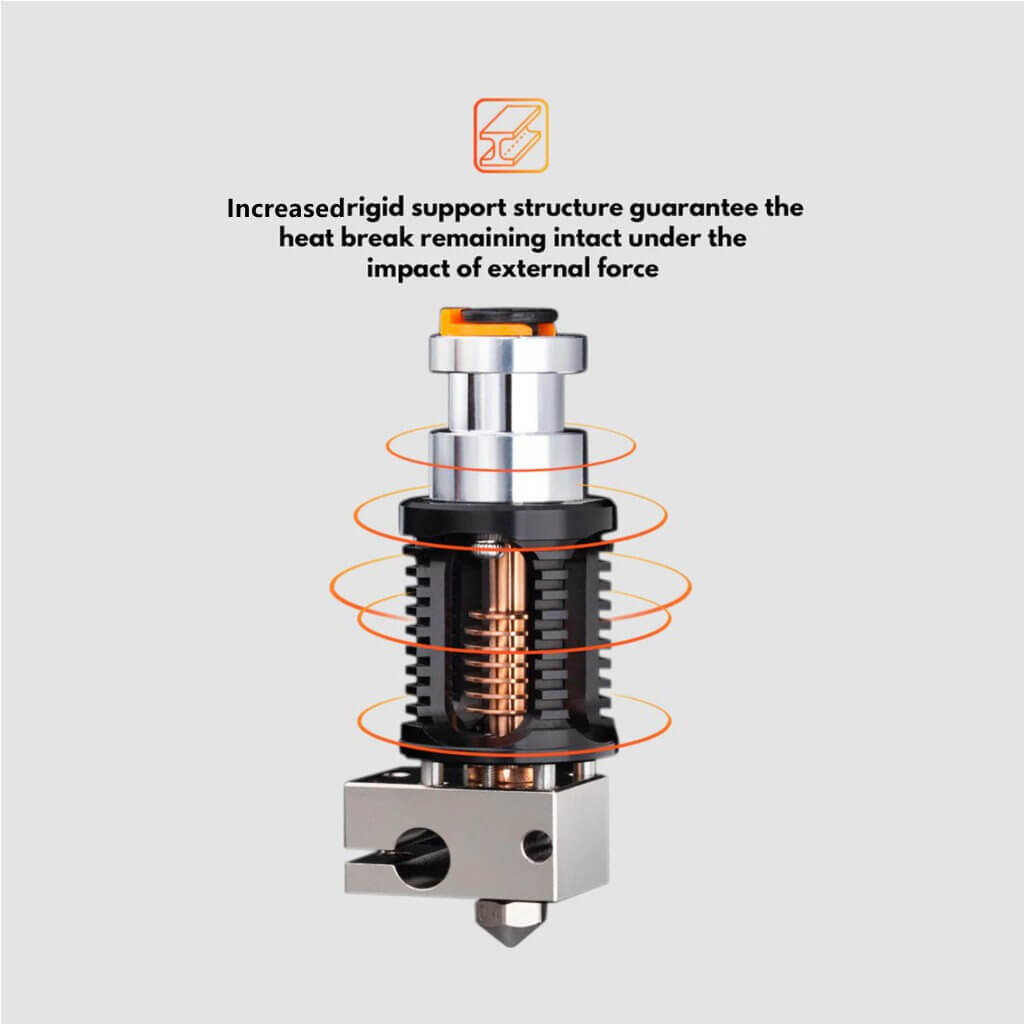

- Increased structural rigidity

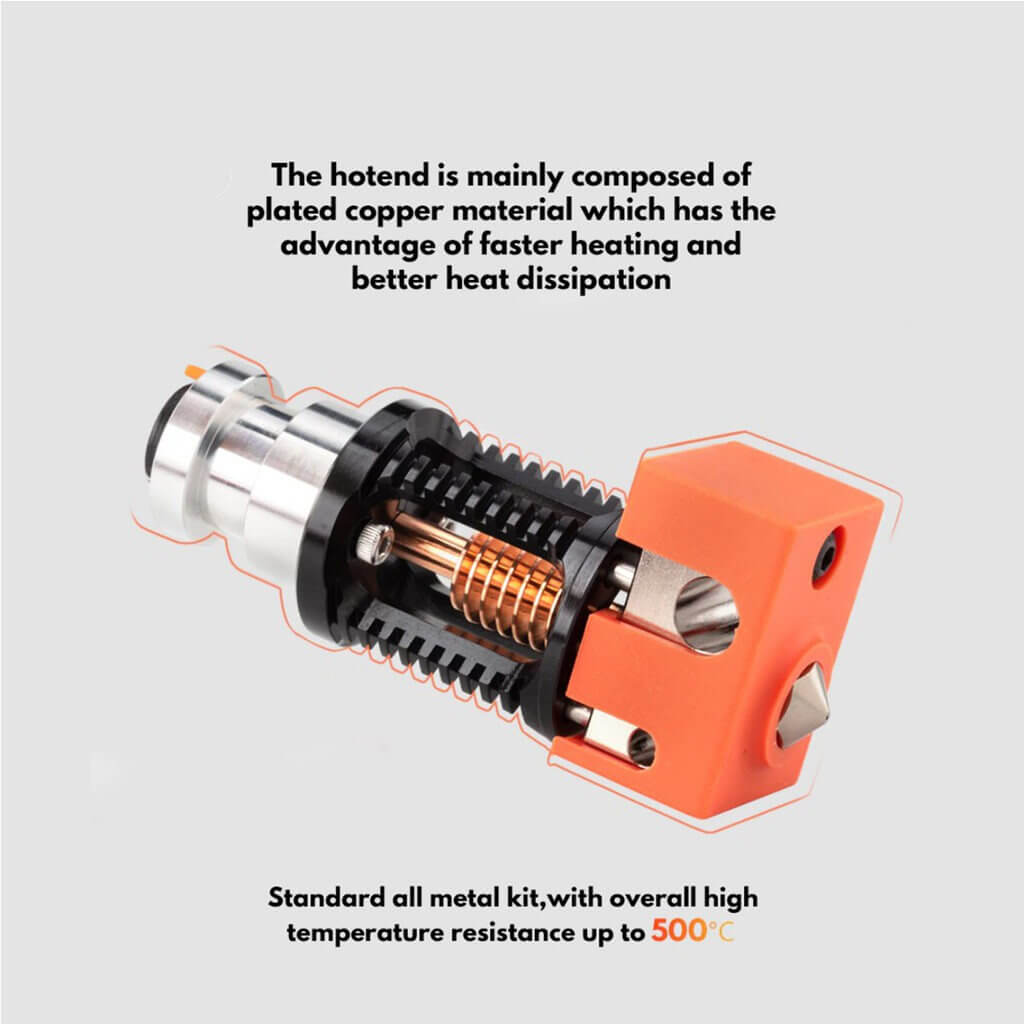

- 450°C rated for larger temperature operating range
- Drop in replacement for E3D V6 hotend. Such as PRUSA printer

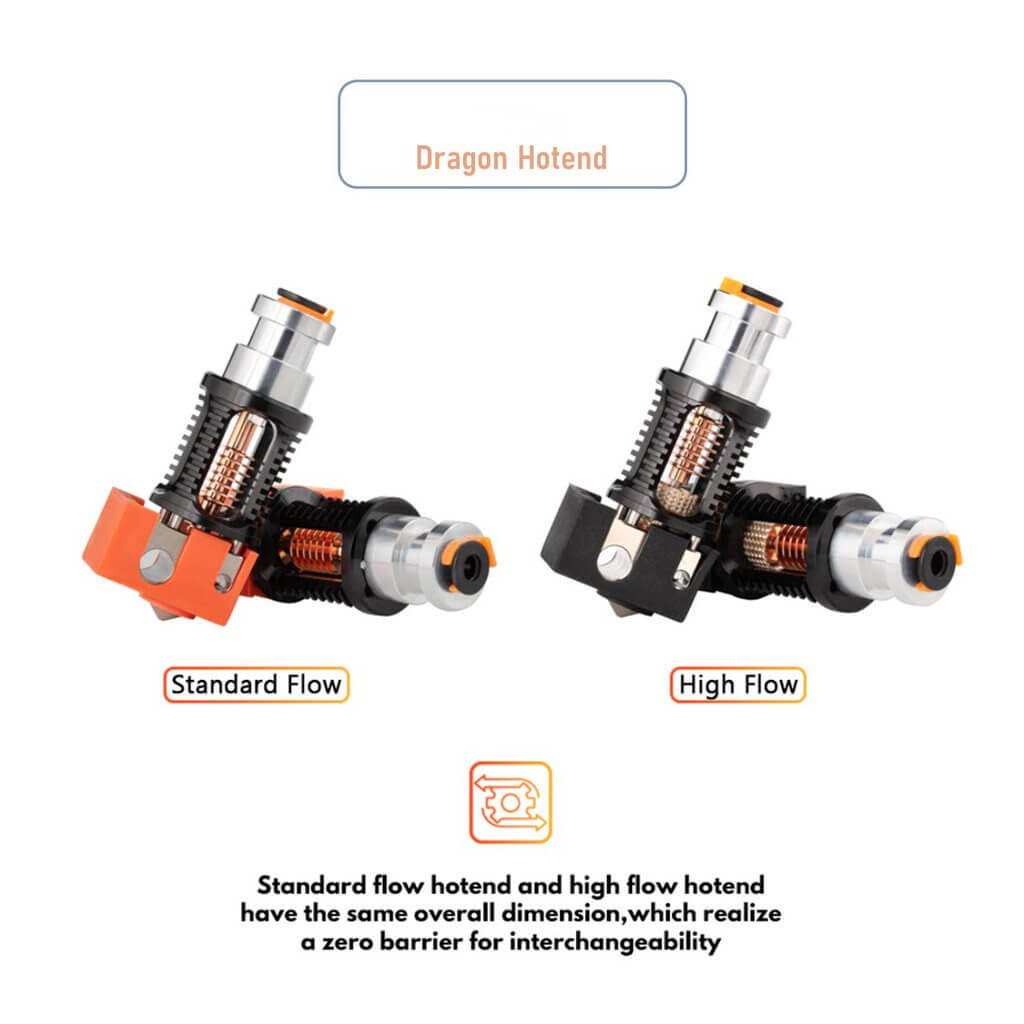

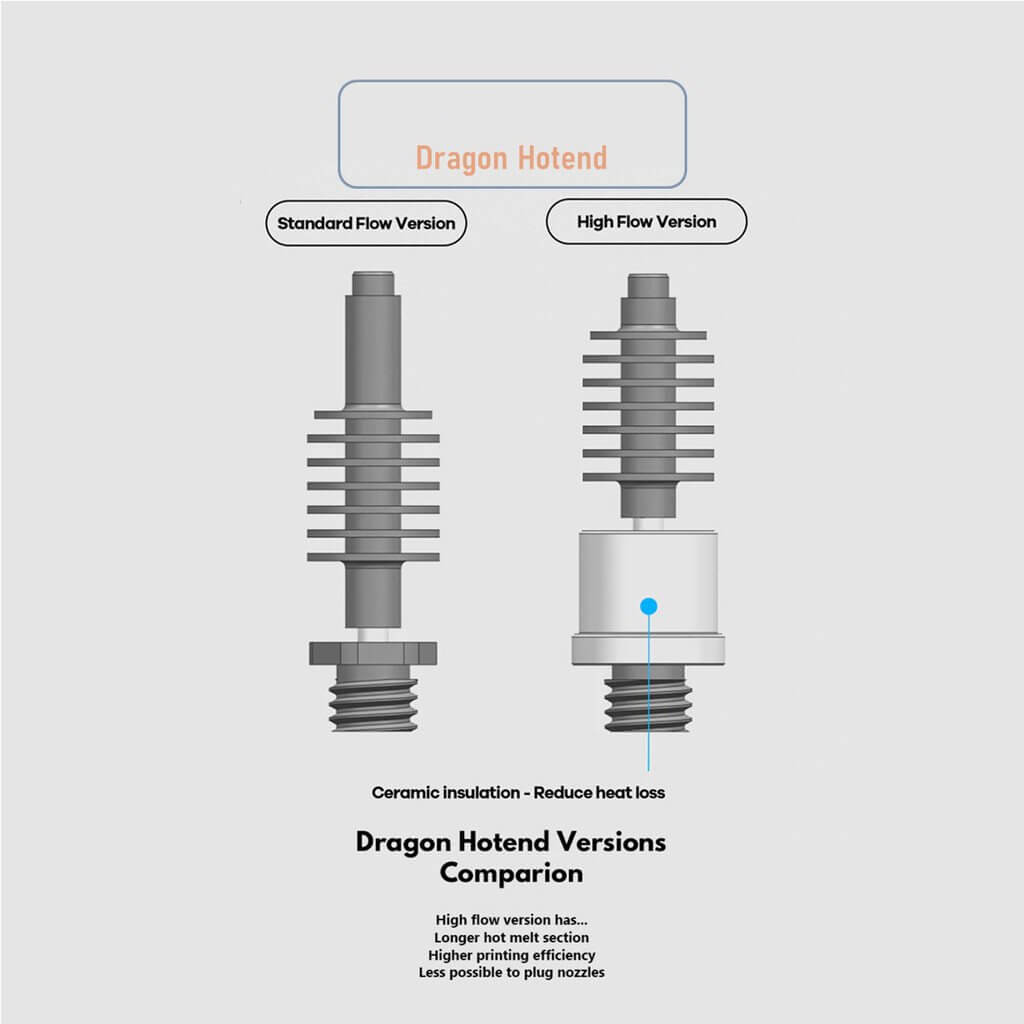

- The HF version(High Flow Capacity) is the same overall dimensions as the standard one
- Painless volcano experience
- Collision will not break your heaterbreaker anymore

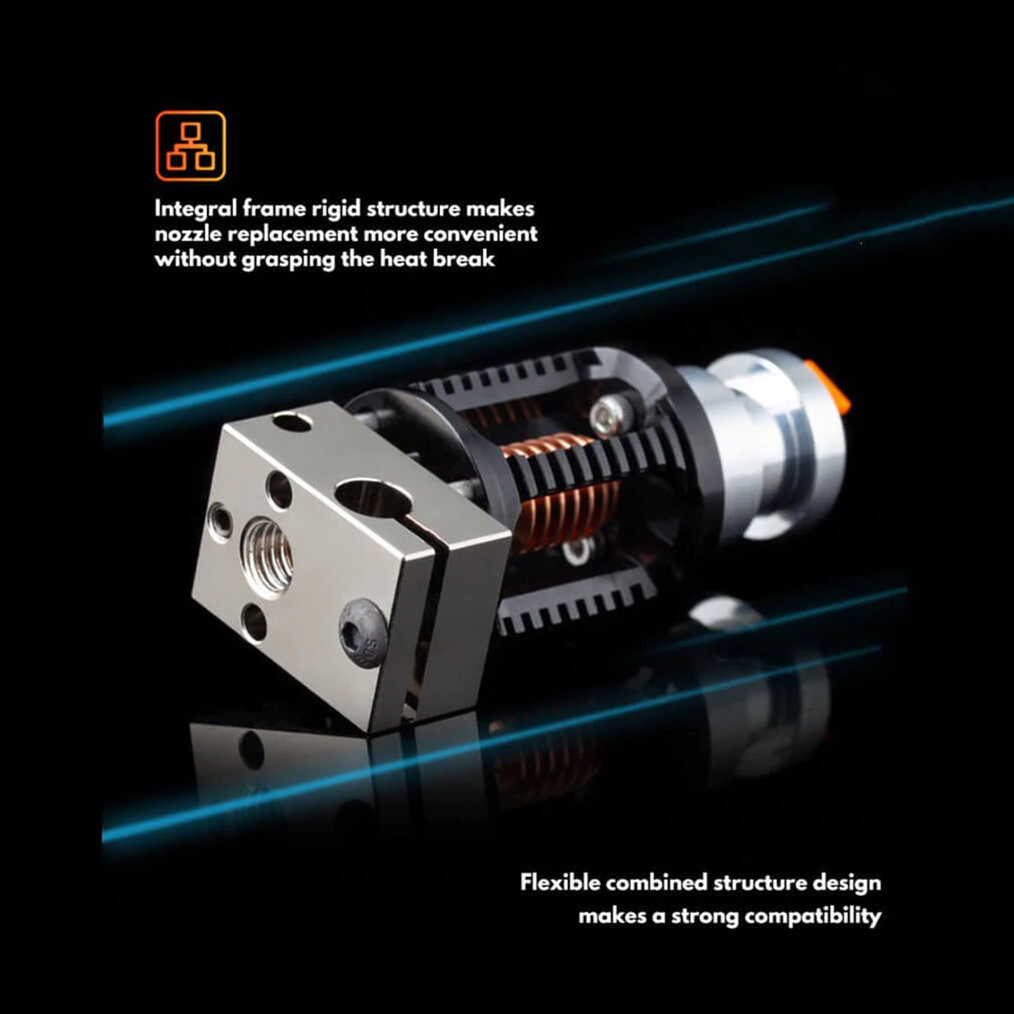

- Nozzles can be changed with one hand without grasping the hot block. Nickel plating copper alloy in the hot block will not soften at high temperatures in excess of 550℃
- Maximum extrusion flowrate test result (PLA@215C)
- E3D V6 HOTEND copper heater block: 1020mm/min ≈ 40.01 mm³/second
- Dragon hotend: 1150 mm/min ≈46.08 mm³/second
- Dragon hotend HF: 1560 mm/min ≈62.51 mm³/second
- Size: Nozzle: 0.4MM/1.75MM filament; Hotend compatible with 1.75MM filament
- Compatibility:
- No V6 adapter status: Compatible with diy design;
- V6 adapter status: Compatible with all V6 HOTEND interfaces, Prusa I3 MK3/MK3S, Titan Extruder, and BMG Extruder, etc.
- Package: 1 x Dragon-Heatsink, 1 x Dragon-Customize Break, 1 x Dragon-Plated Copper Block, 1 x T-V6 Plated Copper Nozzle, 1 x V6 adapter, 1 x Screw package
- Dragon Hotend Installation: Google Drive
