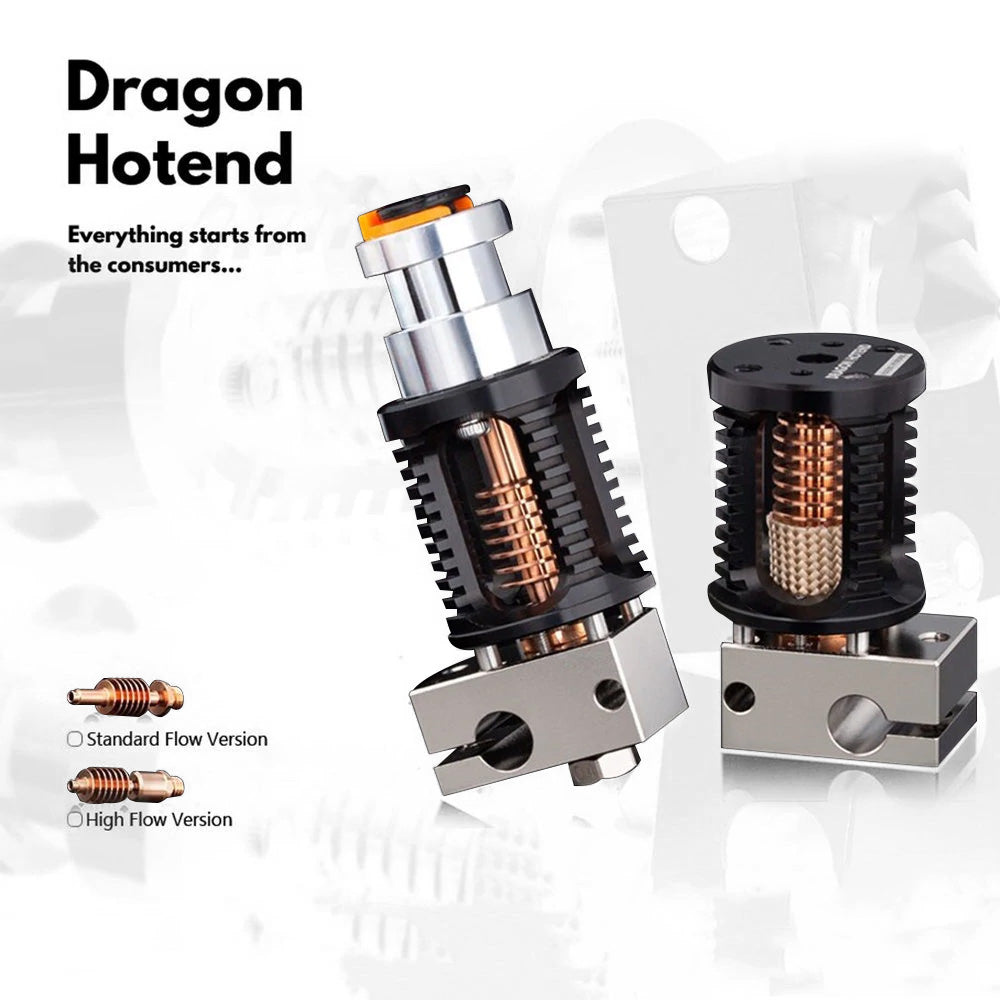

Dragon Hotend V2.0

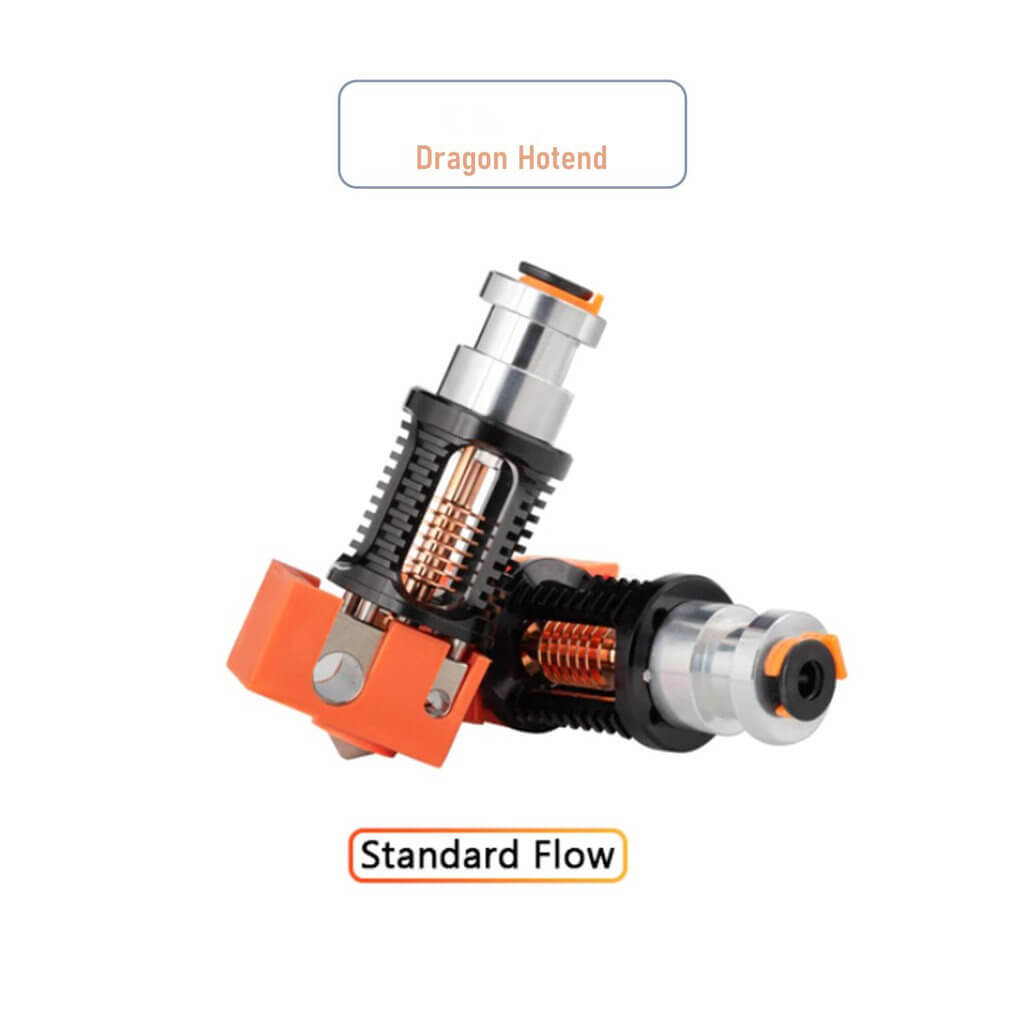

10051-Standard-Flow

Regular price Sale price $93.21 $124.30 Save 25%
/
In Stock. Ships in 24 hours

Only 50 items in stock!

Top Items



If you need to send UPS/Fedex/TNT/DHL, please contact us. We need to discuss the freight with you.
The trianglelab has always been concerned about product quality. We are developing products and working hard to improve the quality. We will not abandon our reputation because of many cheap products on the market. It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others, but please believe in our quality and believe that you will not regret when you receive the goods.


Highlight:

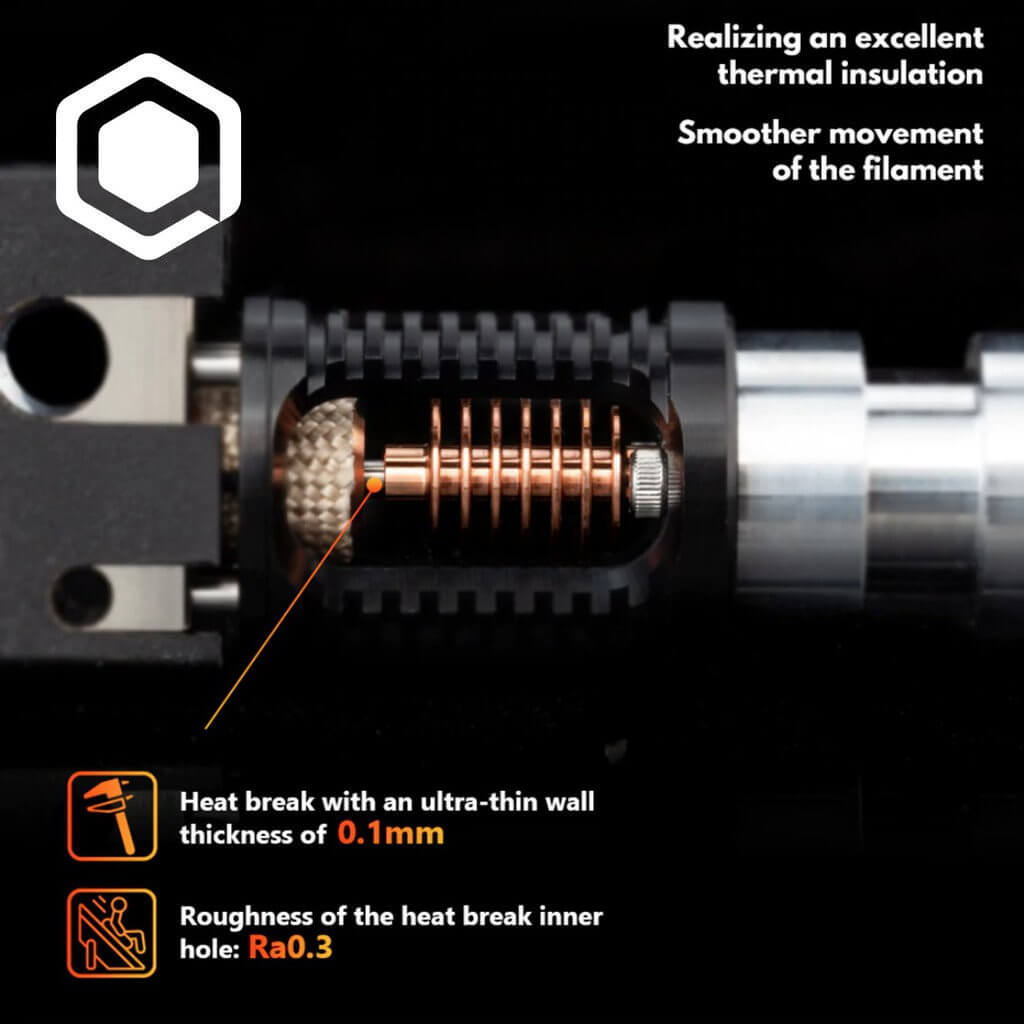

Superior heat break performance.

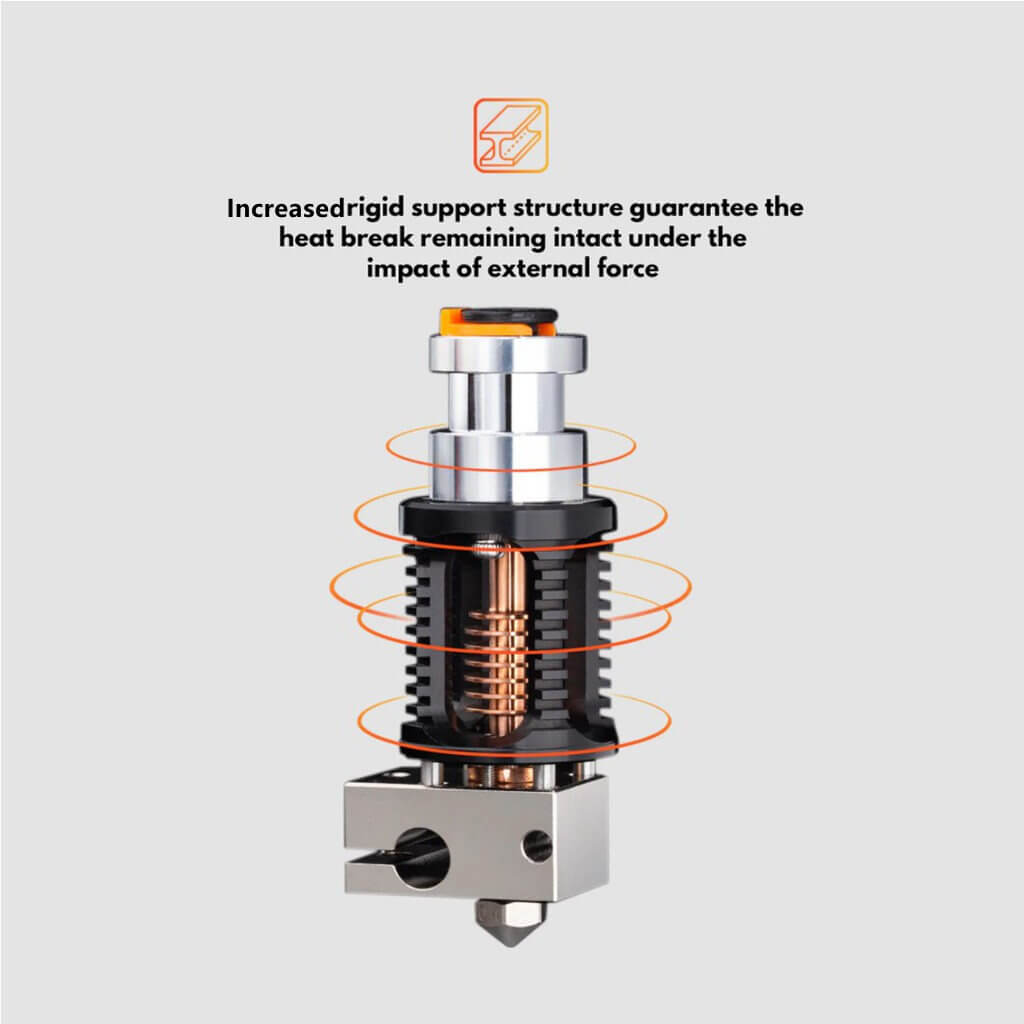

Increased structural rigidity.

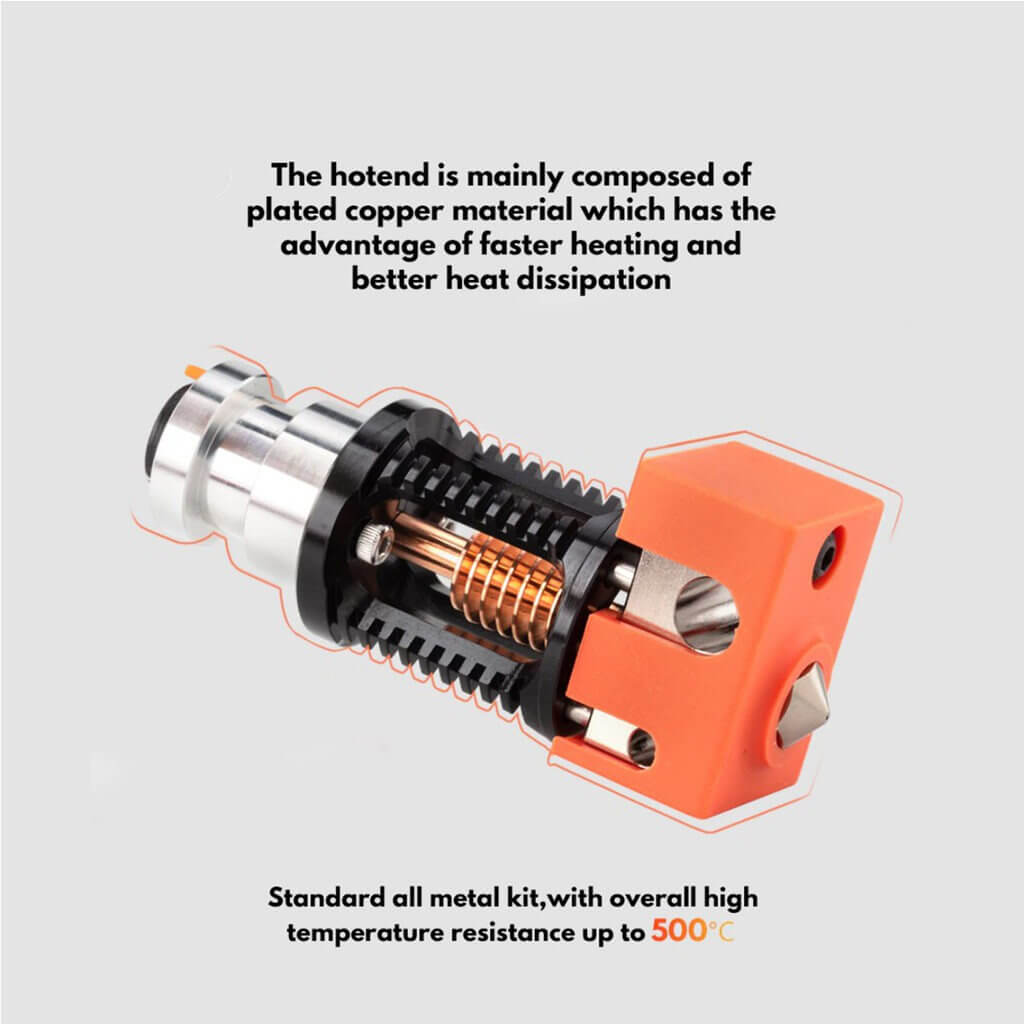

450°C rated for larger temperature operating range.
Drop in replacement for E3D V6 hotend. Such as PRUSA printer.

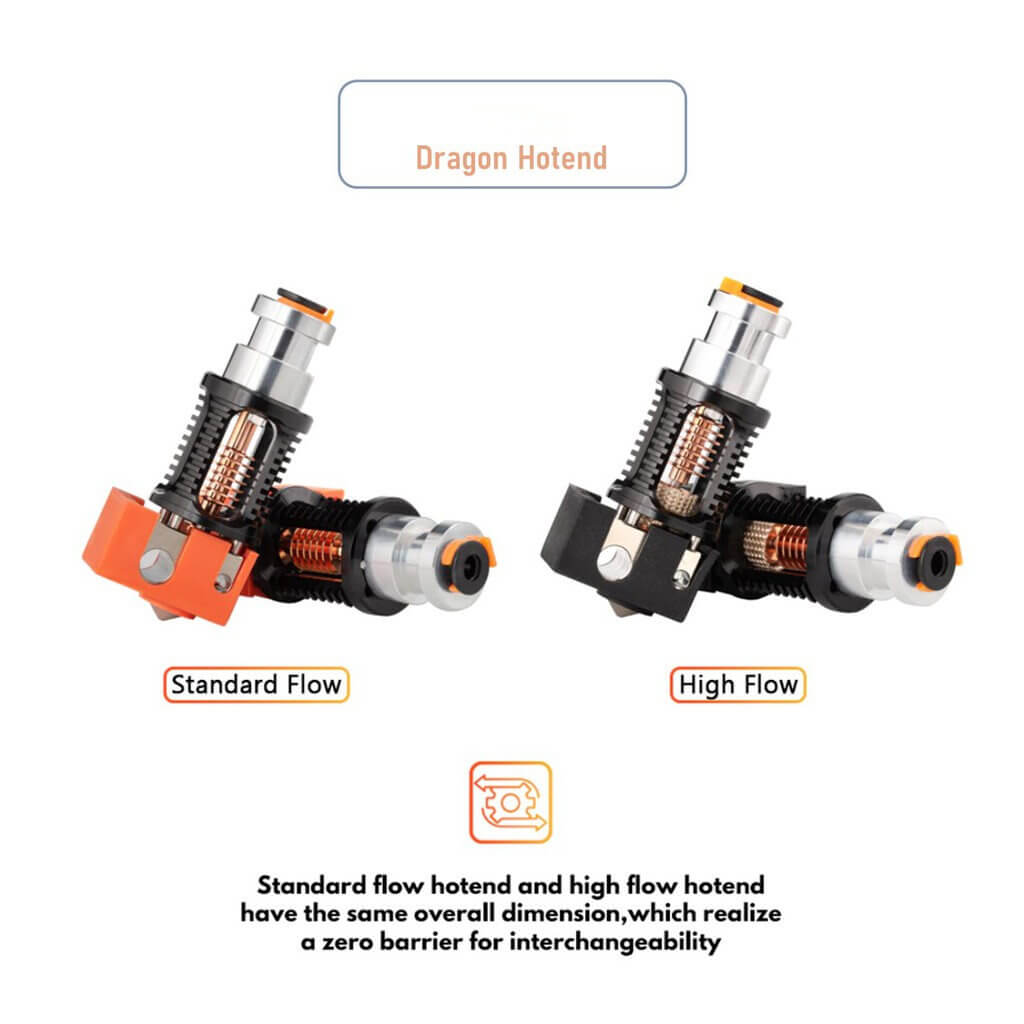

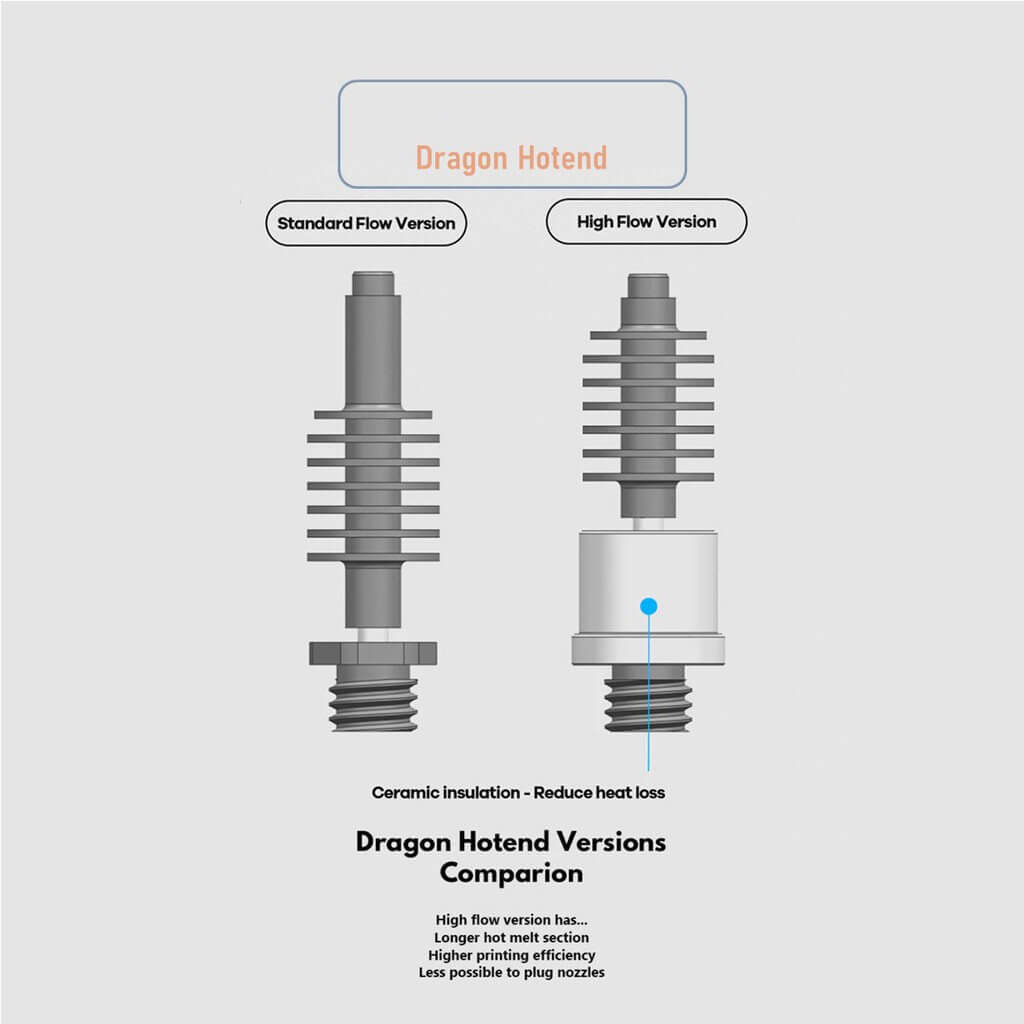

The HF version(High Flow Capacity) is the same overall dimensions as the standard one -Painless volcano experience.
Collision will not break your heaterbreaker anymore.

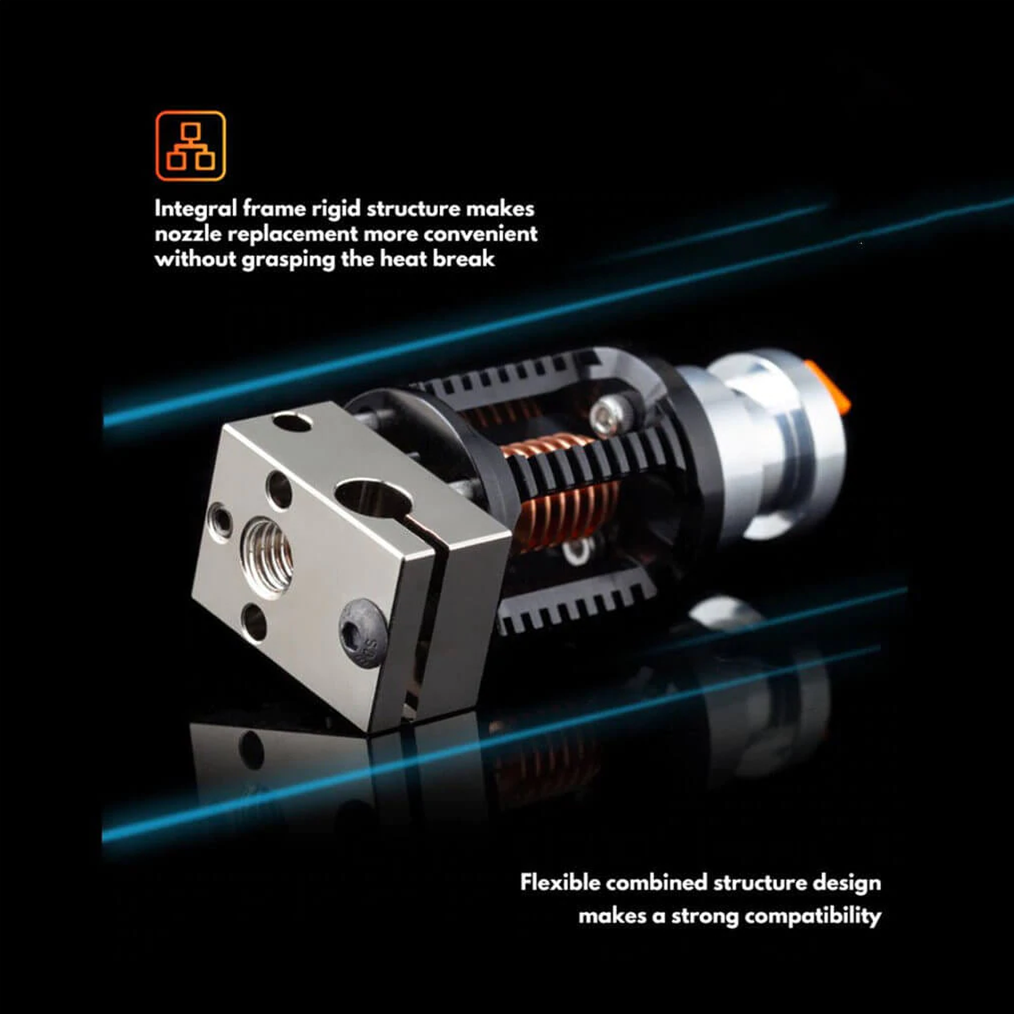

Nozzles can be changed with one hand, without grasping the hot block Nickel plating copper alloy in the hot block will not soften at high temperatures in excess of 550℃.

Maximum extrusion flowrate test result (PLA@215C)
E3D V6 HOTEND copper heater block     1020mm/min ≈ 40.01 mm³/second
Dragon hotend                                     1150 mm/min ≈46.08 mm³/second
Dragon hotend HF                                1560 mm/min ≈62.51 mm³/second

▉Important! Installation Notes:



caveat:
Please do not disassemble it at will. If you must disassemble it, please prepare a complete tool box. The 2 small screws in BLOCK require professional tools.
*Use high-quality screwdriver tools for disassembly
Screwdriver tool- Click here to buy

Name:
trianglelab - Dragon Hotend

▉Size:
Nozzle 0.4MM/1.75MM filament
Hotend compatible 1.75MM filament

▉Compatible:
①No V6 adapter status
Compatible with diy design
②V6 adapter status
Compatible with all V6 HOTEND interfaces
Compatible with Prusa I3 MK3/MK3S
Compatible with Titan Extruder
Compatible with BMG Extruder
* Use your imagination to design a better extrusion head module for it.

▉What's in the box:
Dragon-Heatsink                      X1
Dragon-Customize Break           X1
Dragon-Plated Copper Block      X1
T-V6 Plated Copper Nozzle        X1
V6 adapter                              X1 (GIFT)
Screw                                     X1 package
